Brand:hengxinjia

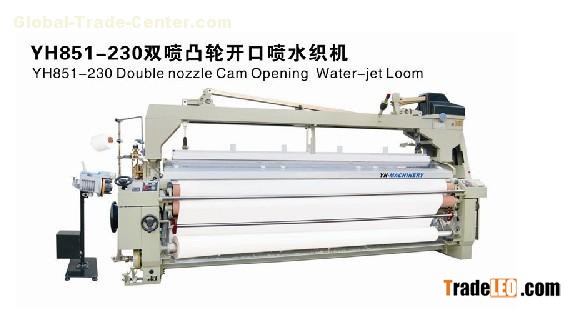

Model:JW-851 series
MOQ:1 Sets
We specialized in water jet loom for 10 years, enjoying an excellent reputation in domestic market. So we believe that the quality will be sure to meet your requirement.
YOU ARE WARMLY WELCOMED TO VISIT OUR FACTORY AND THEN MAKE AN INQUIRY TO US. TKS A LOT!
| Reed width (cm) | 150,170,190 ,210,230, 260,280, 330, 340,350,360,380 |
| Working r.p.m | about 600 |
| Weft density range | 5-60 pieces/cm |
| Motor | 1.5kw, 1.8kw, 2.2kw , 3.5kw,2.6kw ,2.8kw ,3.0kw ,3.5kw ,4.0 kw,4.5kw (according to the certain model) |
| Shedding type | Plain 2-8pcs heald frame (cam or dobby shedding is optional 10-16pcs) |
| Let-off | Mechanical let-off (Electronic let off is optional) |
| Flange diameter:800mm | |
| Take-up | Mechanical take-up (Electronic take-up is optional) |
| Waste filling removal | Mechanical take-up 3 roller |
| Cutter | Mechanical cutter |
| Filling insertion | One/Two pump ,double nozzle (double/three/four nozzles are optional) |
Kind of yarn Apply
Nylon-6 Filament
Nylon-6-Non-Sizing
Polyester Filament
Polyester Draw Textured
Polyester Spun Yarn
Polyester High Twisting Yarn
Polyester POY
Polyester Non-Sizing Filament
O.P Yarn
