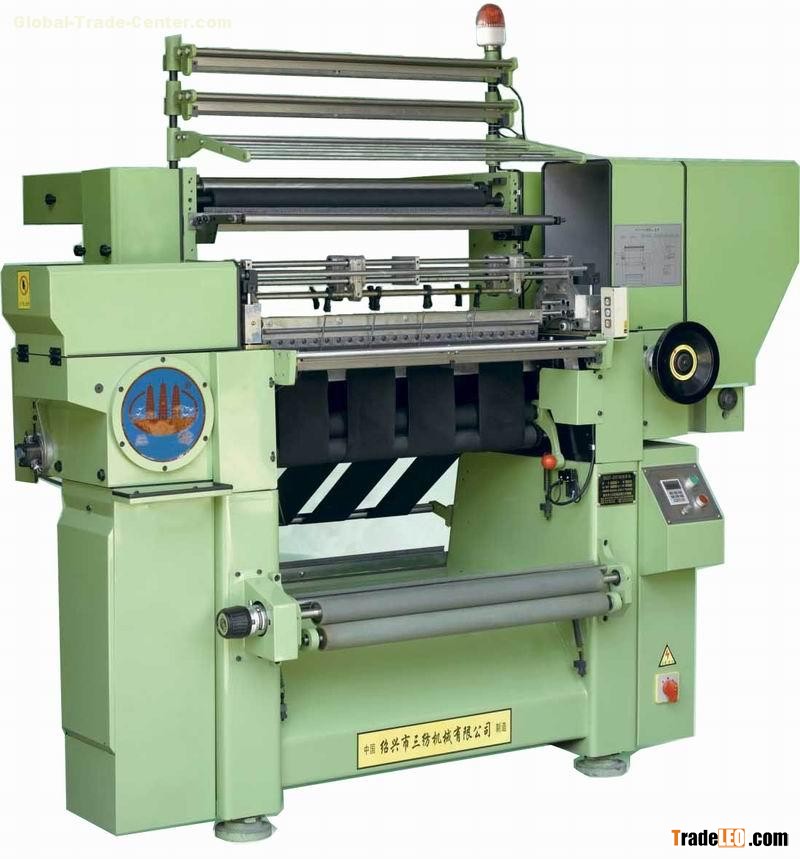

GD-260 Band crochet machine can manufacture laces, elastic and non-elastic bands, Rubber band,medical bandages and fancy lace. The product range can be used in clothes, shoe lace, and medicine.

Gauges come into 15, 18 and 20 or according to customer's request.Automatic lubrication for link chain system allows the machine to run quietly and smoothly at high speed.

Technical parameter

Operation breadth: 762mm(30inch)

Gauge: 15, 18, 20G

Weft bars: 2--6 bars

Control device: 1 set

Operating motor (1.5hp): 1 unit

Rubber feeder system: 2 set

Width-wise device (260mm): 1 set

Bearded needle (G2): 400pcs

Weft guide tubes: 100pcs

Tube for width bandage: 10pcs

Block needle: 5pcs

Dropper: 400pcs

Tool: 1set/3set

Creel for 260 bobbins (max.#20cm): 1 set

Beam holder: 1 set

Net weight of machine: 750kg

Net weight of creel: 235KG

Machine size: 2800 x 1240 x 1900 mm
