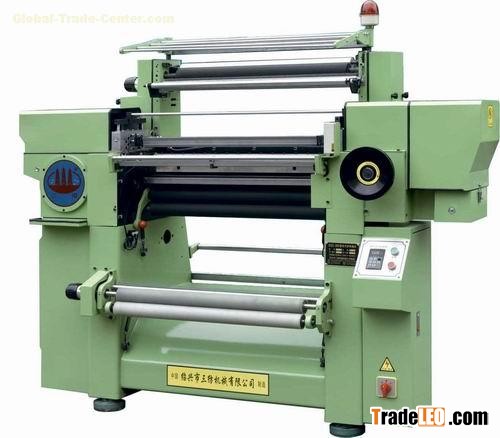

SGD-980 Fancy yarn crochet machine is a high Speed fancy Yarn crocket Machine controls the device by changing inlay methods to produce all king of various pattern yarns. The machine speed is controlled by a frequency converter, starting at slow speed with stepless changes, fast breaking to low speed according to meet the test production demand. The machine is divided into three main sections.

 Technical parameter

Operational breadth: 762mm (30 inch) Gauge

Needles Per inch: 15, 18, 20G

Weft Bar: 2--6 bars

Stitch Density: 5-20S/cm

link Chain: 12-50 sections

Main Shaft Speed: Max. 1500r/min

The Girth of Rack frame: 170cm

Whole Machine Power: 11.56kw

No. of Yarn Bobbin: 260 pieces

Gaugo of Yarn Spindle: 200mm

Main Machine (L×W×H): 1750×1950×1750mm

Winding Section (L×W×H): 3000×2800×2400mm

Yarn frame (L×W×H): 2100×1880×2750mm
