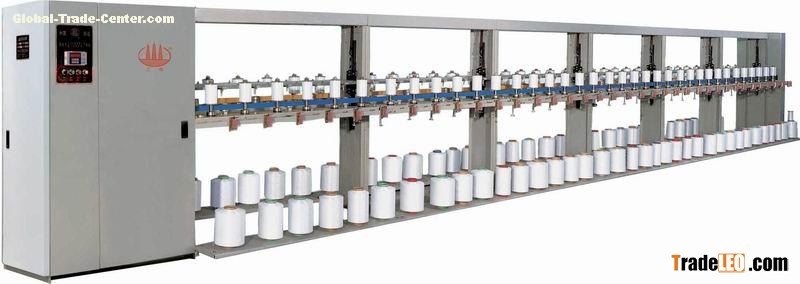

SGD168 type bobbin winding machine is used for rapid winding and non-twisting doubling of all kinds of chemical filber and staple fiber.lt has the structure of two sides and one layer. The whole machine is sprayed plastic. Lt is controlled by computer, regulated speed by frequency variation, and easy to operate. Lts key parts are adopted overseas famous products. Lt is suitable for matching the equipment such as compound twisting machine and mechanical wrapped yarn machine.

Technical parameter

Number of spindles：60-120（adjustable）

Winding speed：max700m/min

Winding bobbin type：flanged bobbin

Systen of motor：round chain

Systen of come and back：rounding chart

Main motor：y90s-6-0.75kw

Traverse motor：y100L2-4-(60spindle 3kw,120spindle 5.5kw)

Products：polyester, filamentyarn,cotton yarn

A：warp, B：weft wind, C：compound type wind, D：built-up type wind

Size：L14500×W1400×H1850 mm

Weight：about 2000kg
