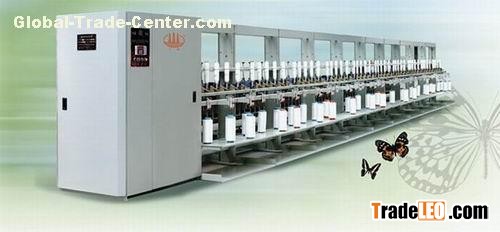

The fore equipment of two-for-one twister for filament, which can wind different forms Semifinished yarn into double-cone bobbin yarn.

Technical parameter

Number of spindles：50-100（adjustable）

Winding speed：max700m/min

Winding bobbin type：φ42×270mm

Volume weight：1kg

Systen of motor：round chain

Systen of come and back：rounding chart

Main motor：y90s-6-0.75kw

Traverse motor：y100L2-4-(60spindle 3kw,120spindle 7.5kw)

Products：polyester, filamentyarn,cotton yarn

A：warp, B：weft wind, C：compound type wind, D：built-up type wind

Size：L14500×W1400×H1850 mm

Weight：about 2000kg
