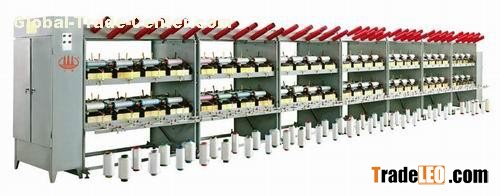

It is practical one which is used plastic spear parts looks better-constuction and shortcut;can be used r air-jet, water-jet etc.

Technical parameter

Type: two sides and layers (A), one sides and two layers (B)

Applird winding bobbin: L220, L280

Range of yarn using: cotton, man, made poly, poly etc

Number of spindles:96,increase according to 16 spindles(A);48,increase or decrease according to 8 spindles(B);

Max speed:400m/min

Style of wind:double

Electic power: 1.5kw×4machine(A); 1.5kw×2 machine(B)

Size:96Double,L11050×w900×H1850mm

Weight:about 2500kg
