Brand:Lion
Model:QL1000-BF-2
MOQ:-0 -
Send Inquiry

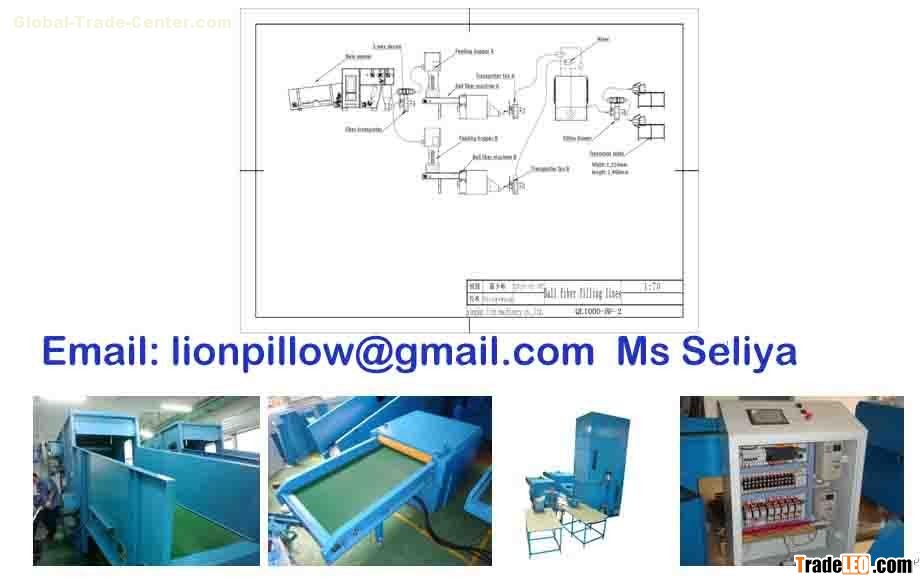

Product name: Ball fiber filling machineSpecification: Item no.: QL1000-BF-2 Layout Dimension: 15000*6000*3600mm Equipment: Bale opener--3-way blower--Feeding hopper*2--Ball fiber machine*2--Blower*2--Mixer--Operation table Voltage: 480v 60Hz 3phase Power: 45.75kw PLC: Simens Material: Conjugate hollow siliconized polyester fiber 7D/15D * 51/64mm Air pressure: 0.6-0.8Mpa Capacity: Min.160-240kg/h Operator: 1 person Weight: Min. 5.5tonDescription: The whole line is assembled with an automatic bale opener which is developed recently; Fiber blower 3 way device; 2 sets of ball fiber machine; a fiber storage and automatic filling table. The 2 sets of ball fiber machine is running all the same time to achieve enough capacity. Put a whole bale raw material of fiber into the bale opener which will be transported to the ball fiber machines separately and automatically controlled by PLC control system. The whole line can be handled by only one operator working at the filling tables. First of all set up the producing time from the control screen according to the ball fiber size required; note that the longer time the smaller size. The second sent up the filling time from the control screen according to the production filling quantity after testing, such like pillow 50*70cm with 600g and the filling time can be around 10second and so on. There are 2 operation functions in the control program which is adjustable filling time set up and filling time controlled by foot switch manually.ATT: MS SeliyaCompany name: Qingdao LION Machinery Co., LtdEmail: lion17@pillowmachinery.comMSN: tiantian-hanhai@live.cnSkype: qdlion17Tel: 86-15853285992Ad: No.666, Haibin Road 12, Jiaonan City, Qingdao,China
