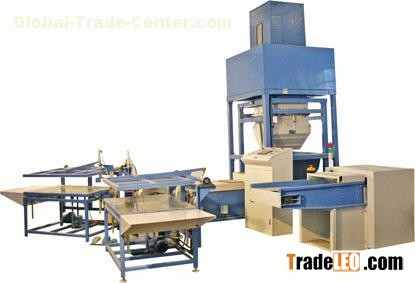

Pillow & cushion automatic weighing & filling line BC105

Pillow & cushion automatic weighing & filling line concludes 4 parts
BC1001-790 + BC503 + BC1028 + BC502-2

MODEL: FIBER CARDING MACHFINE BC1001-790
DIMENSIONS: 2150x1130X940MM
POWER: 6.25KW
NET WEIGHT: 800KG

MODEL: FAN FEEDING BC503
DIMENSIONS: 610x520X800MM
POWER: 2.2KW
NET WEIGHT: 75KG

MODEL: WEIGHING SYSTEM BC1028
DIMENSIONS: 3300x1420X4500MM
POWER: 2.7KW
NET WEIGHT: 1500KG

Two heads filling machine with patting devices BC502-2.
Two heads filling machine: Dimensions: 1200x900X1300mm
Power: 3KW
Net weight: 150kg
Patting devices: Dimension: 1320x970X900mm (each/pcs) total two pcs
Power: 0.37kw
Net weight: 70kg/pcs
Whole line capacity: 160kg/hour
The system can realize fiber carding, accurate weighing and high speed filling.
High technology: Having the most advanced weighing system, the operator can set the fiber weight with touch screen panel, fully automatic and accurate. The handling weight: 150g-1500g.
More safety: The fiber carding machine has metal detector and overloading alarm system to avoid the machine being damaged.
Cost-saving: Place an additional bale opening machine, it only needs one person to run the whole line. Two heads filling machine with patting devices ensure the high speed and top-quality filling.
