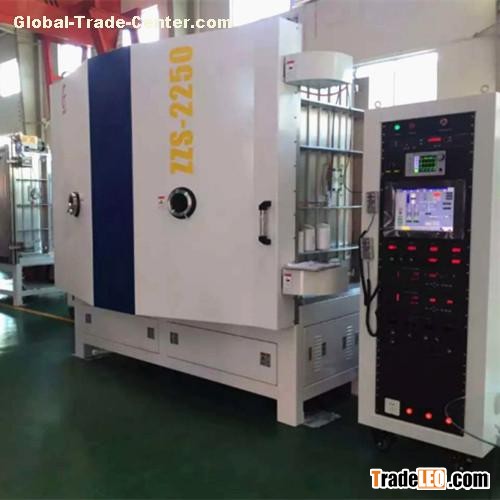

Two E-beam Guns Multilayer Optical Hard Coating Machine

Optical coating machine specification:

Chamber size:Φ1320mm X H1500mm

Jig:14 axles

Crystal control:SQC310 six probes

E-beam gun:two E-beam guns

Vacuum system:Molecular pump + Bipolar rotary vane pump + Roots pump

Ultimate vacuum:4.0 X 10-4Pa

Restore vacuum:3x10-3Pa,less than 15 min.

Heating temperature:down heating 12KW

Power supply:three phase,380V/50HZ

Water pressure:0.2~0.4Mpa

Gas pressure:0.6~0.8Mpa

Weight:8T

Application:

optical coating machine can be used for coating anti-reflection film, reflective film, filter film, beamsplitters, bandpass IR-Cut film, high reflective film, color reflective film and other film system, can realize 0-99 layers coating,also can meet such as automobile reflective glass, telescope, glass lens, optical lens, light cup, etc products coating requirements.
