Hanjiu Hydraulic Steering Unit :

STEERING UNIT 101S:
Product Description

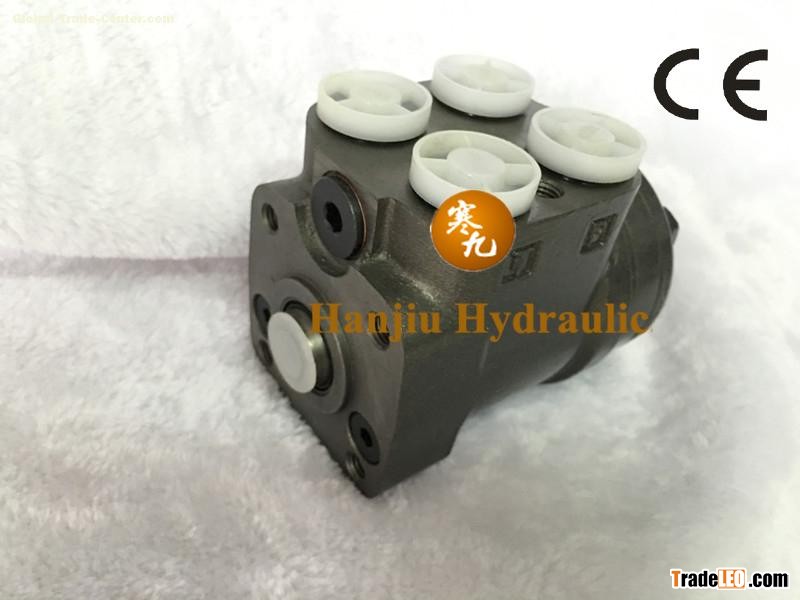

101S series hydraulic steering control unit

1. The same function of the 101 series
2. Including integrated valve (relief valve and checkproof valve)
3. Replace Danfoss (ospc), M+S (HKU/4) series.

Parameters Series
101S-*-***-**-*
Function  code 1,2,4 1,4
Displacement (mL/r) 50 63 80 100 125 160 200 250 280 315 400
Rated Flow (L/min) 5 6 8 10 12.5 16 20 25 28 32 40
Max.input pressure(Mpa) 16
Relief Valve Pressure Settings   ( MPa) 06,07,08,10,12,14,15,16
Shock Valve Pressure Settings    ( MPa) 12,13,14,16,18,20,21,22
Max.cont.back pressure 2.5
Weight(kg) 5.75 5.81 5.89 5.96 6.1 6.3 6.5 6.73 6.91 7.1 7.5
Dimension  L  (mm) 130 132 134 137 140 145 150 156 161 166 176


Hydraulic steering unit applications:
Construction Machinery
Agriculture Machinery
Heavy-Duty Equipment
Forestry Machinery
Mining Equipment
