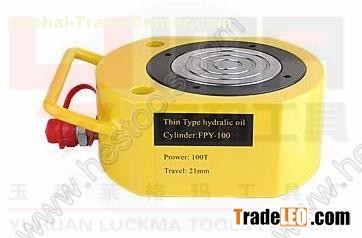

Super thin sings hydraulic cylinder RMC-1001

Product Name:
Super thin sings hydraulic cylinder

Descript:
RMC Super thin single hydraulic cylinder
Low height is suit for working in narrowness;Short stroke can block up times and times

The surface of plunger is finished with chrome plate to protect the using of longvity of the product.

Plunger has function of retracting automatically.

ITEM NO :RMC-1001
Tonnageton(T)  :100
Work travel(mm) :16
Cylinder Effective Area(cm2)  :95
Oil Capacity(L)  : 0.211
Collapsed Height(mm)  : 86
Extended Height(mm) :102
Outside Dia. (?mm)   :185*160
Cylinder Bore Dia.(?mm)   :130
Plunger Dia(?mm)   :110
Thread for input oil-port(zg)   : 3/8"-19
Saddle Protrusion from Plgr.(mm)  :  2
Weight(kg) :15.7
