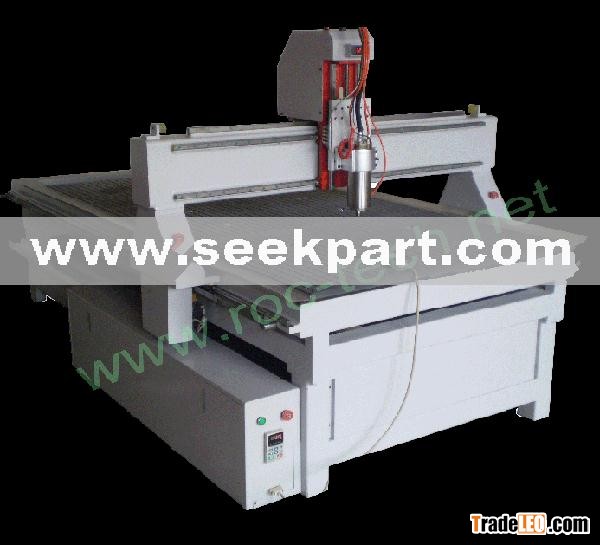

The good quality cnc machinebuilder in the world, cnc lathes, rotary tables. Roctech machine tools and rotary products are built to deliver higher accuracy, repeatability and durability than any other machine tools on the market.

Parameter
1, x, y, z working area 1300x2500x200mm
2, table size 1320x3040mm
3, x, y, z traveling positioning accuracy ± 0.05/300mm
4 x, y, z repositioning positioning accuracy ± 0.05mm
5, table surface bakelite vacuum table (option: T-slot table)
6, frame welded strucutre
7, x, y structure rack and pinion drive, hiwin rail linear bearings
8, z structure ball screw, hiwin rail linear bearings
9, max. Power consumption (without spindle) 2.0kw
10, max. Rapid travel rate 32000mm/min
11, max. Working speed 20000mm/min
12, spindle power motor 3.5kw hsd spindle (option: 2.0kw/6.0 hsd spindle)
13, spindle speed 0-18000rpm
14, drive motors stepper system(option: 380v)
15, working voltage ac220v/50/60hz, 3ph (option: 380v))
16, command language g code
17, operating system dsp system (option: Mach3 pc software)
18, interface usb
19, flash memory 128m(u disk)
20, collet er25
21, x, y resolution <0.02mm
22, software compatability type3 software, ucancam software(option: Artcam software)
23, running environment temperature: 0º C— 45º C
Relative humidity: 30%— 75%
24, packing size
Seperated: 3200x1960x1340mm
Integrated: 3200x1960x1870mm
25, net weight 1200kg
26, gross weight 1450kg

All parameters above subject to change without prior notice.
