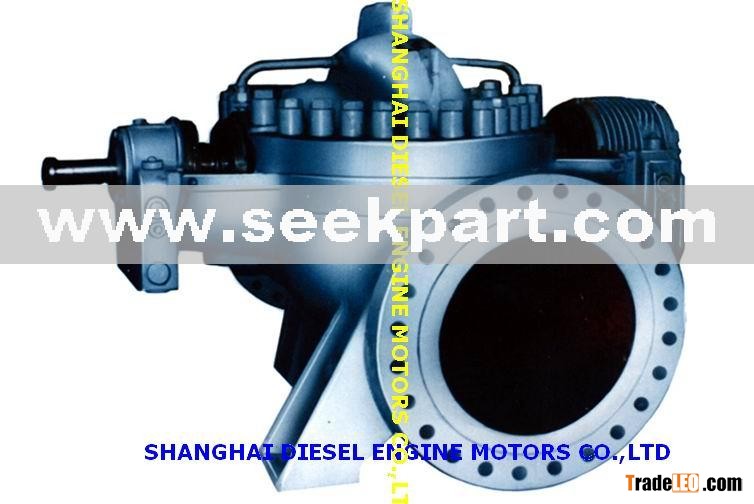

KSY-type pipeline pump
KSY-type pipeline pump products, can produce 20 million tons for the pipeline to provide complete sets of products, the product has the following characteristics.
1. Reliability, bearing body parts, there are two structure, good heat dissipation.
2. Hydraulic parts with high efficiency over current hydraulic model. Than the old oil pipeline pump efficiency 5-8%.
3. A high degree of component commonality.
4. Selection refined to II type of material the main bearing body parts such as cast iron.

Performance range
Flow: (Q) = 54-5500m3 / h
Head: (H) = 80-1080m
Temperature: (T) = -10 - +200

Model Description
KSY2850 - 95A
KSY2850 - 210B
KSY390 - 80.190
KSY - double suction horizontal split centrifugal pumps
2850.390 - Traffic
80.95.190.210 - Head
A, B - cutting the number of impeller, said the order of AB...
F - that pump from the drive direction for a clockwise rotation
The original old type 400KSY250 × 2 KSY750 - 550
KSY3000-190 KSY850-75 × 2 KSY2700-90
400 - inhalation aperture 750, 850, 2700, 3000 - Traffic
75, 90, 180, 190, 250 Single - Head 2 - Series
Pipeline pump for conveying water and solid particles, non-corrosive petroleum products.

Structure
KSY-type pumps are divided into single-stage double-suction and suction ends of two pairs of supporting structure type.
Pump, pump cover in the open for the level of the pump cover side cast and threw two axial hole vortex chamber connected to the circulation line connected to mechanical seal flush.
Impeller cast as a whole, and by the balance.
KSY2850-210 and KSY2850-95 bearing with the following structure:
Coupling side mounted a cylindrical roller bearings, the other end opposite to install a set of ball bearings and thrust cylindrical roller bearings, bearing cast in vitro axial heat sink surface, natural cooling.
KSY390-380, KSY390-190 and KSY3390-80 bearing with the following structure:
Bearing body parts thrown oil ring bearings with thin oil lubrication, bearing external surface of casting a heat sink, cooling and to facilitate maintenance, KSY-type pipeline pump longer flexible diaphragm coupling components.

Pump Piping System
Rinse cycle pump mechanical seal with throttle plate and the micro-pipe filter (transmission oil from time to filter).

Steering
Order according to the user of this pump requires a two shift, mainly from the motor depends on the pump for the counterclockwise rotation-, For clockwise rotation, Ze Xu specified, and to model the (post-flow value) as "F"
