Brief Introduction

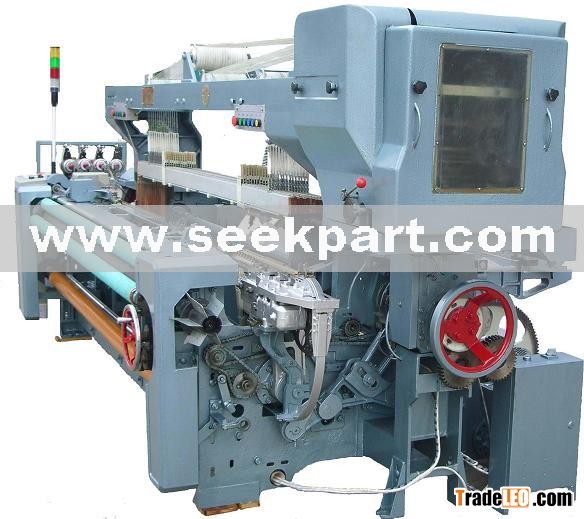

Integrating the features of rapier looms of Model SJ758 and other imported and domestic rapier looms, Model SJ736-III rapier loom is specially designed for weaving of light, medium and heavy fabrics and check designs, it adopts automatic pick finder and electronic color selector.
Features:
Control panel:
The loom is controlled by the control panel with a micro-computer, the lcd display provides a very user-friendly human-machine interface, which shows the production statistic data of each shift and provides the weft color programming function.
Weft color selection:
The machine adopts electronic color selector up to 8 colors, and the color selection pattern is programmed directly on the machine control panel.
Wefting:
Wefting mechanism adopts 6-lever wefting structure and can ensure the adjustment of the rapier entry and exit time and ensure stable wefting and insertion motion. This machine adopts 4 levers, short connectors and short sley to complete the beating motion, the rock shaft adopts 110mm(diameter) seamless tube to ensure the beating strength and can be suitable for high-speed motion and weaving of heavy and high density fabrics. The rapier transmission box adopts the advanced helix umbrella gears to ensure stable transmission. The tension device adopts 3-rear-beam tension structure, which is specially designed for balancing the warp tension of high-density weaving and can improve the quality of the weaving fabrics.
Pick finding mechanism:
The machine adopts electronic let-off mechanism with a high-accuracy step motor and the optimized mechanical take-up system for stable and accurate pick finding motion. The pick finding motion is very stable and proved to be very successful and reliable.
The adoption of two pressing rollers on the fabric winding roller enables the worker to unload the fabric from the fabric roller without stop. The frequent adoption of bearings for the major moving parts provides better performance and easier maintenance.
Main Parameters
Reed space: 1800-2100mm suggested speed: 240rpm-250rpm
Reed space: 2100-2300mm suggested speed: 230rpm-240rpm
Reed space: 2800-3400mm suggested speed: 170rpm-190rpm
Motor power: 2.2kw
Shedding device: 20-level dobby
Control: Micro-computer
Warp&weft broken: Automatic stop
Configuration
Color selection: 6 colors
Weft accumulator: 6 pcs
Cloth roller: 1.5 pcs
Warp beam: 1.5 pcs
Warp dropper: 5000 pcs
Heald wire: 5000pcs
Heald frame: 14 pcs
Rapier & belt: 2 sets
