DIN Cast iron gate valves

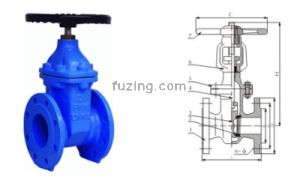

Components

1 Body Cast iron or ductile iron
2 Disc Ductile iron with NBR/EPDM
3 Bonnet Cast iron or Ductile iron
4 Stem  Stainless steel
5 O-ring NBR
6 Nut Brass
7 Hand wheel  Cast iron or Ductile iron

Application

1 Face to face is according to DIN3202-F4
2 flange drilled is according toDIN2532/ DIN2533

Test

Working Pressure  PN10 PN16
Shell Pressure  15bars 24bars
Seat pressure  11bars 17.6bars


1. We are a professional manufacture in Hardware about 30 years. We also develop and produce drinking water faucet, safety valves, water gauge valves, fittings, etc.
2. With high technical machinery equipment and experienced staff. We obtained the ISO 9001: 2008NSF certificate.
3. Supplying hight quality with reasonable price is the goal for us to serve you better. We are confident of reaching the goal of customer's satisfaction.
4. We also devote to research and deveopment of valves and hardware products.
5. We are welcome for further enquiries and cooperation.
