Product Description

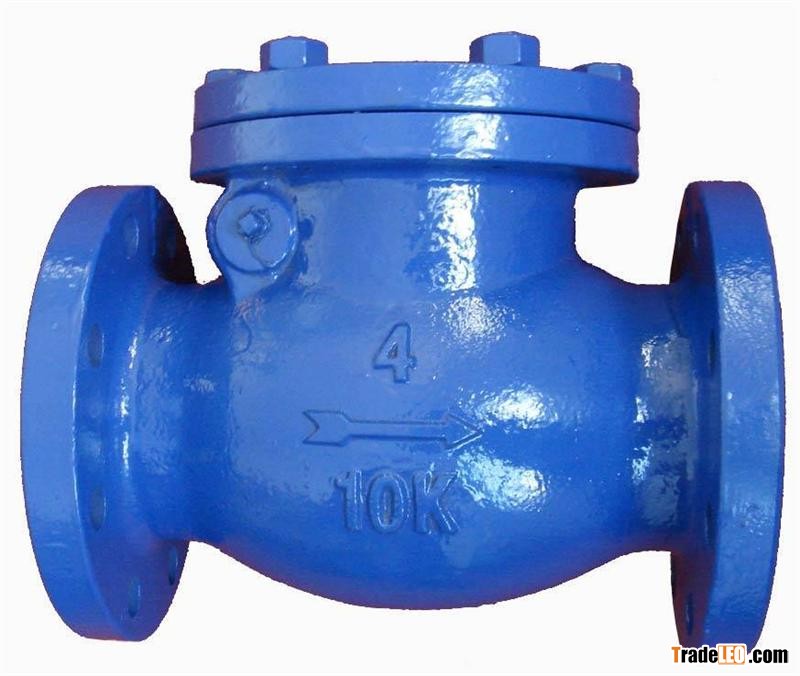

ci swing check valve Materials and SpecificationsPart Name Materials EN Spec. ASTM Spec. Body Cast Iron EN-JL1040 A126 Class B Cover Cast Iron EN-JL1041 A127 Class B Side Plug Brass CuZn39Pb3 B16 C36000 Hanger Pin Stainless Steel BS970 420S37 AISI 420 Hanger Ductile Iron EN-JS1050 A536 65-45-12 Disc Cast Iron EN-JL1040 A126 Class B Disc Trim Bronze EN1982 CC491K B62 C83600 EPDM/NBR Commercial Commercial Body Trim Bronze EN1982 CC491K B62 C83600 Gasket Graphite Non-asbestos Non-asbestos Dimensions(mm)Size 50/2" 65/2.5" 80/3" 100/4" 125/5" 150/6" 200/8" 250/10" 300/12" 350/14" 400/16" 450/18" 500/20" 600/24" A 203 216 241 292 330 356 495 622 699 787 914 914 1016 1219 B 121 135 141 168 182 215 267 305 343 450 520 550 590 680

Optional Information
- Payment : T/T or L/C
- Delivery : 30days
- Origin : China
- Minimum Order : 1 sets
- Samples : Charge
