Product Description

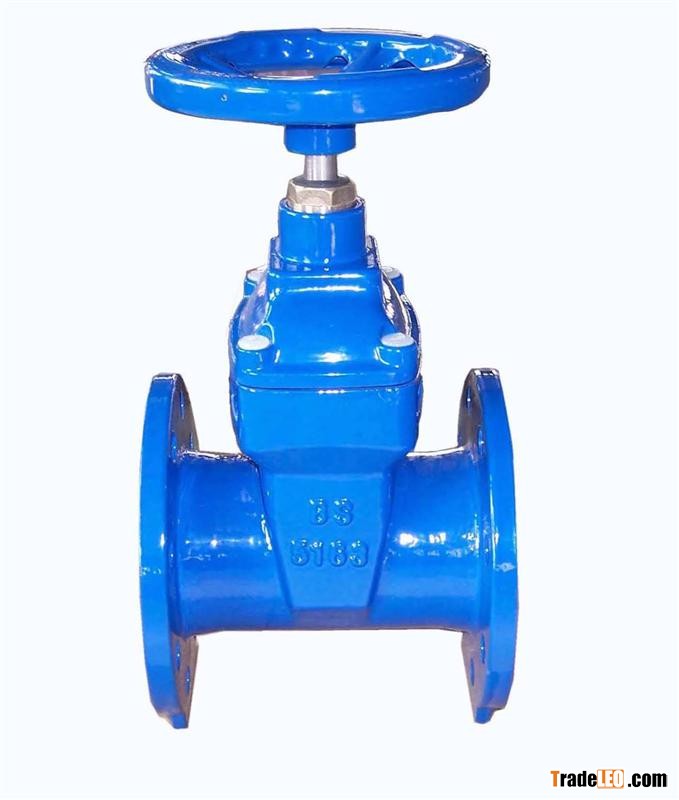

Non Rising Stem BS5163 Ductile Iron Gate Valve, Flange Drill to BS4504 PN16
Body and Cover :ductile iron (GGG50)
DISC:GGG50+EPDM

Product Feature
1.ductile iron body and bonnet with high strength and impact resistance
2.rubber encapsulated DI wedge to ensure drop tight sealing.
3.Rubber bonnet gasket for longevity and protection of bonnet bolts.
4.Stainless steel stem with high strength and corrosion resistance
5.Back sealing facility to allow for replacement of seals under full operating pressure
6.Straight through full bore to avoid debris traps
7.Isolated fasteners for corrosion protection.
8.Wiper ring to prevent impurities from entering the stem sealing system
9.Anti friction thrust washer for low operating torques. integral cast in foot for safe and easy storage.
10.Full diameter waterway. hand wheel ,square cap operation.

Product Specification / Models
DN40-DN600

Optional Information
- Payment : T/T
- Delivery : 40-60DAYS
- Origin : CHINA
- Minimum Order : 100
- Packaging : WOODEN CASE
- Inspection : internal control
- Samples : Charge
- Sample Price : 50 USD
- Remarks : RZT
