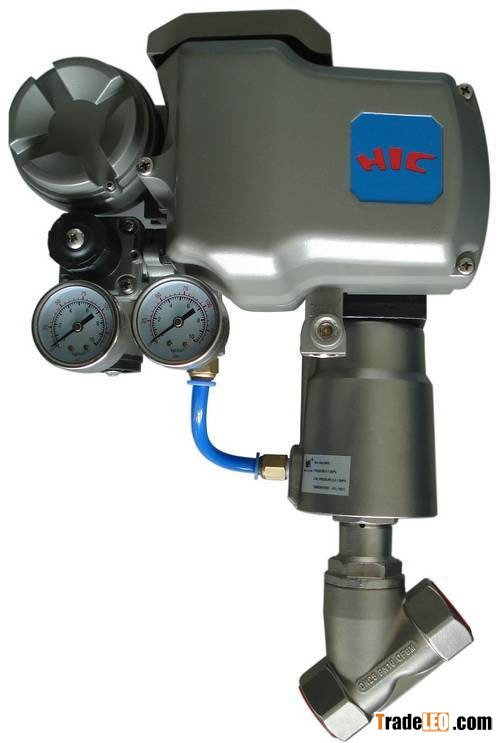

Product Description
Pipeline Medium:1.Standard temperatue Suitable for ≤180℃Water vapor.and /or Gas
2.High Temperature Suitable for≥180℃, ≤250℃ Superheated steam and/or Gas.Suitable for liquid under the condition of liquid letting-out with discharging press).
Medium flow direction .Flow Enter above Seat.
Pipeline Connection Thread,Welding,Flange,Hooping.
Valve Body Material:304 or 316
Actuator;4.5～6.0 Bar or 3.0～6.0 Bar。
Actuator Type Spring Return and Normal Closed,Control Pressure 4.5～6.0 Bar or 3.0～6.0 Bar.The actual control pressure depends on the pipeline pressure difference.
Actuator Body Material:PAC
角阀规格
Valve Size执行器
规格Actuator size最大管道压差
Max pipeline pressure(bar)KV
m?/h
1CV=
1.16KVModel No.订购型号
A=4.5B=3.0丝口Thread焊接Welding法兰Flange卡箍Hooping
G3/8DN104014.09.13.7213401SRCF/X/P-P/R-A/B213406SRCF/X/P-P/R-A/B213404SRCF/X/P-P/R-A/B213408SRCF/X/P-P/R-A/B
G1/2DN154012.07.84.0215401SRCF/X/P-P/R-A/B215406SRCF/X/P-P/R-A/B215404SRCF/X/P-P/R-A/B215408SRCF/X/P-P/R-A/B
5016.010.44.2215501SRCF/X/P-P/R-A/B215506SRCF/X/P-P/R-A/B215504SRCF/X/P-P/R-A/B215508SRCF/X/P-P/R-A/B
G3/4DN204010..06.55.8220401SRCF/X/P-P/R-A/B220406SRCF/X/P-P/R-A/B220404SRCF/X/P-P/R-A/B220408SRCF/X/P-P/R-A/B
5014.09.18.0220501SRCF/X/P-P/R-A/B220506SRCF/X/P-P/R-A/B220504SRCF/X/P-P/R-A/B220508SRCF/X/P-P/R-A/B
G1DN255012.07.815.0225501SRCF/X/P-P/R-A/B225506SRCF/X/P-P/R-A/B225504SRCF/X/P-P/R-A/B225508SRCF/X/P-P/R-A/B
6316.010.419.0225631SRCF/X/P-P/R-A/B225636SRCF/X/P-P/R-A/B225636SRCF/X/P-P/R-A/B225638SRCF/X/P-P/R-A/B
8018.011.722.0225801SRCF/X/P-P/R-A/B225806SRCF/X/P-P/R-A/B225804SRCF/X/P-P/R-A/B225808SRCF/X/P-P/R-A/B
G11/4DN325010.06.524.0232501SRCF/X/P-P/R-A/B232506SRCF/X/P-P/R-A/B232504SRCF/X/P-P/R-A/B232508SRCF/X/P-P/R-A/B
6314.09.127.5232631SRCF/X/P-P/R-A/B232636SRCF/X/P-P/R-A/B232634SRCF/X/P-P/R-A/B232638SRCF/X/P-P/R-A/B
8016.010.430.5232801SRCF/X/P-P/R-A/B232806SRCF/X/P-P/R-A/B232804SRCF/X/P-P/R-A/B232808SRCF/X/P-P/R-A/B
9018.011.732.0232901SRCF/X/P-P/R-A/B232906SRCF/X/P-P/R-A/B232904SRCF/X/P-P/R-A/B232908SRCF/X/P-P/R-A/B
G11/2DN40639.05.938.0240631SRCF/X/P-P/R-A/B240636SRCF/X/P-P/R-A/B240634SRCF/X/P-P/R-A/B240638RCF/X/P-P/R-A/B
8011.07.242.0240801SRCF/X/P-P/R-A/B240806SRCF/X/P-P/R-A/B240804SRCF/X/P-P/R-A/B240808SRCF/X/P-P/R-A/B
9014.09.145.0240901SRCF/X/P-P/R-A/B240806SRCF/X/P-P/R-A/B240804SRCF/X/P-P/R-A/B240808SRCF/X/P-P/R-A/B
10016.010.448.02401001SRCF/X/P-P/R-A/B2401006SRCF/X/P-P/R-A/B2401004SRCF/X/P-P/R-A/B2401008SRCF/X/P-P/R-A/B
G2DN50806.03.950.0250801SRCF/X/P-P/R-A/B250806SRCF/X/P-P/R-A/B250804SRCF/X/P-P/R-A/B250808SRCF/X/P-P/R-A/B
9010.06.553.0250901SRCF/X/P-P/R-A/B250906SRCF/X/P-P/R-A/B250904SRCF/X/P-P/R-A/B250908SRCF/X/P-P/R-A/B
10012.07.855.02501001SRCF/X/P-P/R-A/B2501006SRCF/X/P-P/R-A/B2501004SRCF/X/P-P/R-A/B2501008SRCF/X/P-P/R-A/B
12516.010.463.02501251SRCF/X/P-P/R-A/B2501256SRCF/X/P-P/R-A/B2501254SRCF/X/P-P/R-A/B2501258SRCF/X/P-P/R-A/B
G21/2DN651006.54.279.02651001SRCF/X/P-P/R-A/B2651006SRCF/X/P-P/R-A/B2651004SRCF/X/P-P/R-A/B2651008SRCF/X/P-P/R-A/B
12512.07.890.02651251SRCF/X/P-P/R-A/B2651256SRCF/X/P-P/R-A/B2651254SRCF/X/P-P/R-A/B2651258SRCF/X/P-P/R-A/B
14514.09.195.02651451SRCF/X/P-P/R-A/B2651456SRCF/X/P-P/R-A/B2651454SRCF/X/P-P/R-A/B2651458SRCF/X/P-P/R-A/B
System characteristics:Having self-lock function when the system losing power or pressure air.

Optional Information
- Payment : TT
- Delivery : by sea
- Origin : CN
- Minimum Order : 5
- Packaging : carton
- Inspection : CE
- Samples : Free
