Product Description
Detail description

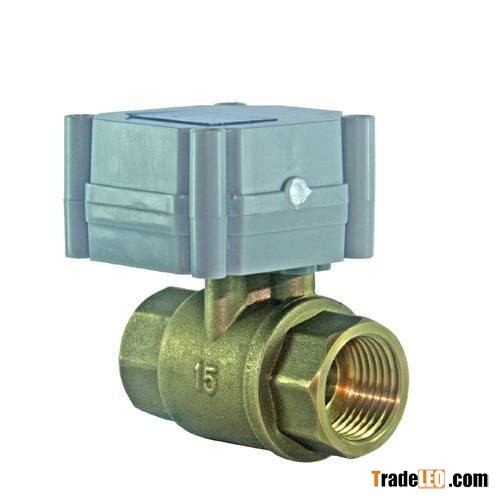

Size 1/2''
Product specificationsTonhe-15-A
Medium pressure≥1.5MPa
The pressure of valve broken≥3.5MPa
Circulation mediumWater,air
Rated voltageDC5V/DC12V
Working current≤50MA
Open/close time≤9S
Extra long time50000 times
Body materialBrass /copper
Actuator materialAlloy ABS
Airtight Pressure 0.20Pa,pressure maintaining 15s,Spillage≤0.122ml/s
Actuator rotation90?
Environment temperature －10℃～55℃
Liquid temperature2℃～90℃
Manual overrideNo
Line Control2 Lines control

Product Feature
Design feature
1 All-copper gear design ,high accuracy output torque, especially for multi-channel scaling system.
2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing.
4 Good sealing performance

Application
For occasions
1 IC card water meter, heat meter.
2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system,small-scale industrial automation equipment, environmental protection.

Optional Information
- Payment : tt
- Delivery : 15days
- Origin : zhejiang
- Minimum Order : 200
- Packaging : carton
- Samples : Charge
