Product Description

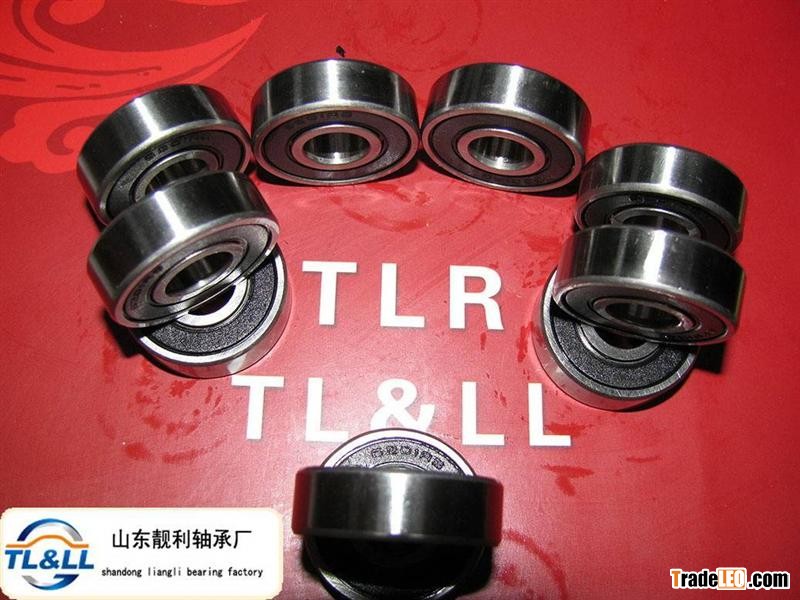

Deep groove ball bearings in the structure of each ring with a cross-section of both the ball about a third of the equatorial circumference of the continuous groove type raceway. Deep groove ball bearings are mainly used to bear radial load, but also can withstand a certain degree of axial load. When the bearing radial clearance increases, with the nature of angular contact ball bearings, can withstand both directions alternating axial load.With the same size compared to other types of bearings, such bearings friction, high limiting speed, high precision, when a user selection of the preferred bearing type. Deep groove ball bearing structure is simple and easy to use, is the largest production volume, most widely used of a class of bearings
Product Feature
Low noise long life high speed it can suffer from both axial and bidirectional radial road, it can be used in these occasions with the demand of rubber seal usually filled with lubricant in advance.
Product Specification / Models
Deep groove ball bearing structure in the form: With a dust cover and with a ring of deep groove ball bearing assembly has filled the right amount of grease should not be heated before installation do not have to clean, no further lubrication during use to adapt to operating temperature of -30 ?C to +120 ?C Room..Deep groove ball bearing main purposes
Application
Deep groove ball bearings are easy to use. It shares the largest production volume.
Other Information
Item No. d B D rs cr cor weight ball no. ball size (mm) (mm) (mm) (kn) (kn) (kg) (mm) 6200zz 10 30 9 0.6 5.1 2.39 0.032 8 4.763 6201zz 12 32 10 0.6 6.1 2.75 0.037 7 5.953 6202zz 15 35 11 0.6 7.75 3.6 0.045 8 5.953 6203zz 17 40 12 0.6 9.6 4.6 0.066 8 6.747 6204zz 20 47 14 1.0 12.8 6.65 0.106 8 7.938 6205zz 25 52 15 1.0 14 7.85 0.128 9 7.938 6206zz 30 62 16 1.0 19.5 11.3 0.199 9 9.525 6207zz 35 72 17 1.1 25.7 15.3 0.288 9 11.112 6208zz 40 80 18 1.1 29.1 17.8 0.366 9 12.0 6209zz 45 85 19 1.1 32.5 20.4 0.398 10 12.0 6210zz 50 90 20 1.1 35.0 23.2 0.454 10 12.7
Optional Information
- Payment : t/t
- Delivery : fob
- Origin : shandong
- Minimum Order : 500pcs
- Packaging : oem brand
- Inspection : papp
