Model:1W180
Send Inquiry
（Copyright? 2009.2010.Jiangmen Yinghao Electrical Appliances Co., Ltd. All rights reserved）

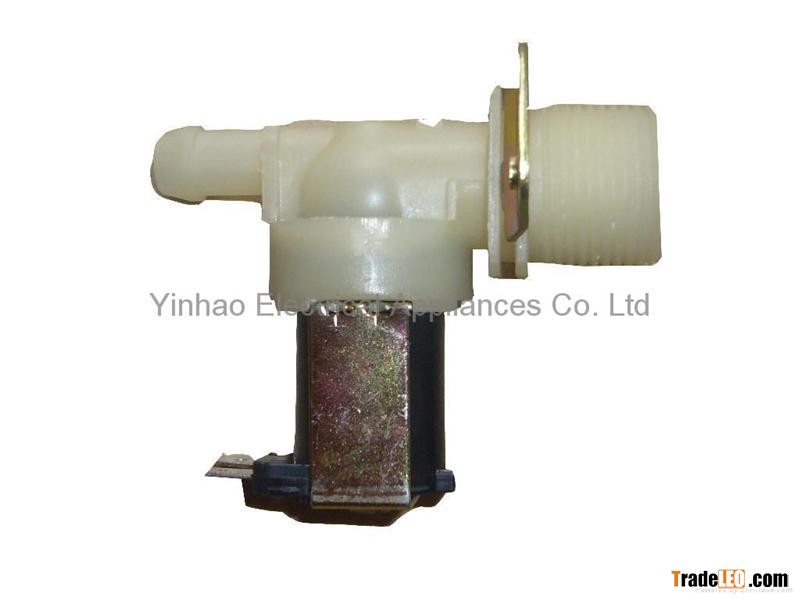

Name: 1-way 180° Inlet Valve
Recommended Usage:bathroom, washing machine,dishwasher
Voltage:AC220~240V, AC110~127, DC24V, DC12V, DC6V, or upon request
Frequencey: 50HZ/60HZ
Flow Rate:10L/min(0.3MPa）
Inlet Screw: G 3/4"
Outlet Diameter:Φ10.5 ,Φ12.5mm
Duty Type: Continuous
Inlet valve is widely used in industry like washing machine and dish washer, ice Maker, etc.
We have been supplying Electrical appliance parts for 20 years to consumers and trade customers.
Money back satisfaction guarantee. Buy with confidence.
| No. | Item | Defect Type | Lot based | |||||
| A | B | C | Critical | Inspection level | AQL | |||
| 1 | visual | √ | S-2 | 1.5 | ||||
| 3 | Insulation resistance | √ | n＝ 5 | |||||
| 4 | Electrical Strength | √ | ||||||
| 5 | Leak current | √ | ||||||
| 6 | Low Voltage Start | √ | S-1 | 2.5 | ||||
| 7 | Input Power | √ | S-1 | 2.5 | ||||
| 8 | Flow Rate | √ | S-1 | 4 | ||||
| 9 | Seal | √ | S-1 | |||||
| 4 |
