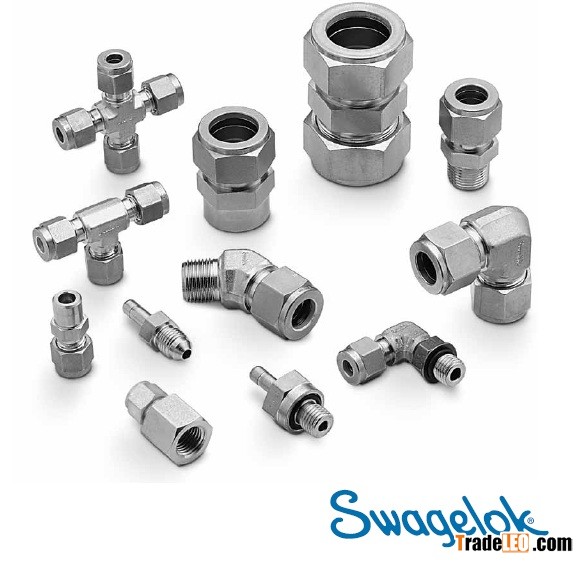

All Parker and Swagelok® fittings: unions, connectors, reducers, elbows, tees, crosses, adaptors and accessories.

■ Available in tube sizes from 1/16 to2 in. and 2 to50 mm

■ Consistent gaugeability upon initial installation

■ Easy to disconnect and retighten

■ Wide variety of materials and configurations

Lowest prices guaranteed and shortest delivery time! Ship globally.

Ordering codes

Swagelok tube fitting ordering numbers follow the sequence shown below.

Example: SS -200 -1 - 2RT

SS  -  2   0   0   -   1  -    2  RT

A - Material

   A = Aluminum

   B = Brass

   C20 = Alloy 20

   HC = Alloy C-276

   INC = Alloy 600

   M = Alloy 400

   NY = Nylon

   S = Carbon steel

   SS = 316 stainless steel

   T = PTFE

   TI = Titanium

   625 = Alloy 625

   825 = Alloy 825

B – Tube OD

Fractional, in.

1 = 1/16

2 = 1/8

3 = 3/16

4 = 1/4

5 = 5/16

6 = 3/8

8 = 1/2

10 = 5/8

12 = 3/4

14 = 7/8

16 = 1

18 = 1 1/8

20 = 1 1/4

24 = 1 1/2

32 = 2

Metric, mm

2 = 2

3 = 3

4 = 4

6 = 6

8 = 8

10 = 10

12 = 12

14 = 14

15 = 15

16 = 16

18 = 18

20 = 20

22 = 22

25 = 25

28 = 28

32 = 32

38 = 38

50 = 50

C - Series

      0 = Fractional 1/16 to 3/8 in. and

      1 1/4 to2 in.

      1 = Fractional 1/2 to 1 1/8 in.

      M = Millimeter tube size

To order a female Swagelok tube fitting, add F.

Example: SS-100F-1-1.

D - Component

0 = Fitting

1 = Body

E - Fitting Type

1 = Male connector

2 = 90° male elbow

3 = Tee, union

4 = Cross, union

5 = 45° male elbow

6 =Union

7 = Female connector

8 = Female elbow

9 = Elbow, union

11 = Bulkhead male connector

61 = Bulkhead union

71 = Bulkhead female connector

A = Adapter

C = Cap

P = Plug

PC = Port connector

R = Reducer

R1 = Bulkhead reducer

2R = Reducing elbow

TFT = Tee, female run

TMT = Tee, male run

TRT = Tee, ISO/BSP parallel male

positionable run

TST = Tee, straight thread with

O?ring male positionable run

TTF = Tee, female branch

TTM = Tee, male branch

TTR = Tee, ISO/BSP parallel male

positionable branch

TTS = Tee, straight thread with

O?ring male positionable

Branch

F - Second End Connection Size

Add a size designator from the list at

left for the second end connection or if

the fitting is a reducing union.

G - Second End Connection Type

Add a second end connection type

designator as needed.

AN = 37° male AN flare

ANF = 37° female AN flare

BT = Bored-through fitting

F = Female thread

KN = Knurled nut, nylon ferrules

KT = Knurled nut, PTFE ferrules

M = Metric tube end

OR = O-seal connection

PR = ISO/BSP positionable parallel

pipe thread

RG = ISO/BSP parallel pipe thread

(gauge)

RJ = ISO/BSP parallel pipe thread

(Japanese gauge)

RP = ISO/BSP parallel pipe thread

RS = ISO/BSP parallel pipe thread

RT = ISO/BSP tapered pipe thread

ST = Straight thread with O-ring

(for SAE/MS)

W = Male pipe weld/tube socket

weld
