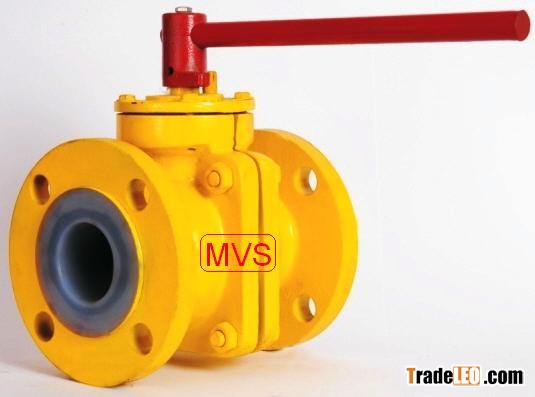

PTFE/FEP/PFA/PP Lined Ball Valves
2016-10-23 07:22  Views:295
Price:Negotiable
Brand:MVS
Send Inquiry

We offer qualitative range of ball valves, which are ideal to use where metal or alloys cannot be used. Our range of PTFE ball valve are made of high grade of material and are completely durable and weather resistant. It is a fluid regulating instrument. Some of the features of our ball valves are:

  • Good tensile strength
  • High impact strength
  • High melting point
  • Weather resistant.



Size : - 25 mm to 150 mm

Body : - Graded C.I or Ductile Iron ASTM A 351, Gr.CF8(S.S-304 or 316) Lined By FEP/PFA

Ball : – ASTM A 216, Gr.WCB, Casting grade Lined by FEP/PFA
Lining Material : - FEP/PFA
Lining Thickness : - 3 to 5 mm THK.

Design : - Two Piece As per BS- 5351

Temp. Resistant : - FEP- -20 to 180* PFA- -20 to 230*

Testing : - Hydro Test -11 kg /cm2 to Full Vacuum as per BS/API Pneumatic Test- 6 kg/cm2
Spark Test-15 KVA DC

F to F : - As per Class 150

Flange Drilling : - As per ANSI B 16.5

Operation : - Usually Manual Lever operated, Gear and Pneumatic Actuation also provided on Request
