PN10 PN16 Wafer Type Butterfly Valve - Sell

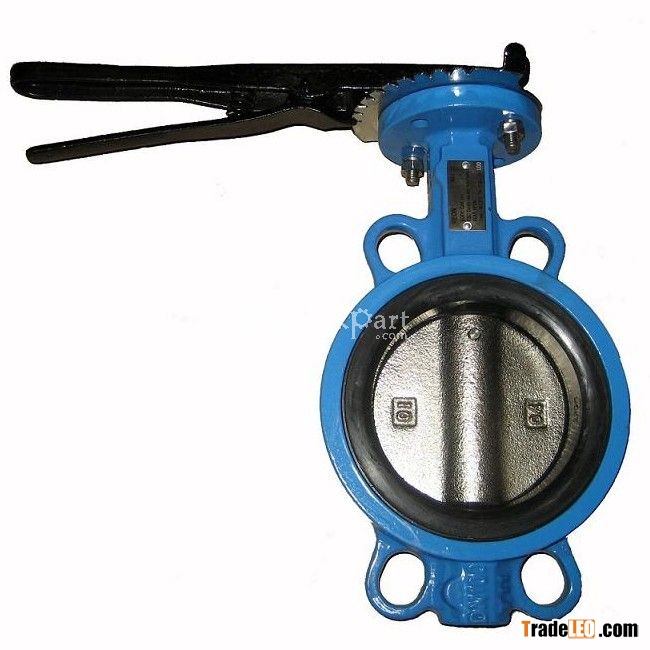

PN10 PN16 Wafer Type Butterfly Valve

2016-10-23 07:22 Views:176

Price:Negotiable
Model:butterfly valve

Name: Wafer Butterfly Valve
Size: 2"-12"
Pressure: PN10, PN16, CL150
Material: Cast Iron, Ductile Iron
Disc: Cast Iron, Stainless Steel, Carbon Steel
Seat: EPDM, NBR
Stem: SS410
Design Standard: API609；EN593, etc.
Face to Face: GB12238, BS5155, API609, MSS SP-67,DIN3202-K1, EN558-1 20 Series
Flange Drilling: DIN2501, BS4504, BS10-E, ANSI125/150, ASA125/150, AS2129Table D/E, JIS5K/10K/20K.

Flange Drilling: DIN2501PN10/PN16; BS10-D; JIS10K; BS4504; ANSI125/150; AS2129 Table D/E; ASA125/150 etc.
