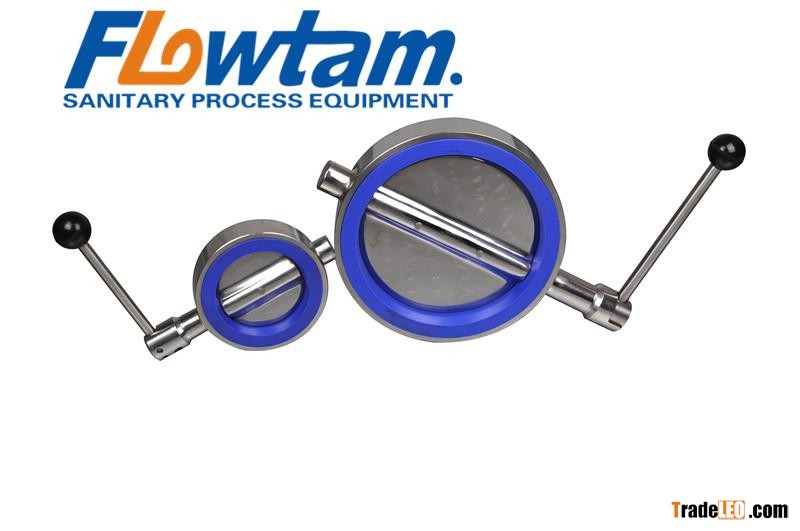

Product Name: Sanitary Butterfly Valves
Brand: Flowtam
Material :304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.4um
Certification: CE  ISO9001:2000

Tech data:
Size : DN15-DN200  1/2"-8"
Standard: DIN,SMS,3A,ISO,IDF
Material: AISI304(L)  AISI316(L)
Connection Type: Weld, Clamp, Thread
Polish: Mirror Polish Ra<0.4um
Max. Working pressure:  1.0 MP(10bar)
Min.Working pressure:  Vacuum
Working Temperature:  -5°to 95°
Material:The parts contact with the liquid adopt AISI 304 or AISI 316L
Other Parts :Adopt AISI 304
Sealing Material: Silicon , EPDM , PTFE
Application:  Dairy, beer, food, beverage, pharmacy, biotechnology, etc
Working principle:  manual operation or driving device operation.
Manual operation:  pulling handle, multi-operation.
Pneumatic device: Normally closed, normally opened, opened and closed by two air flues separately
