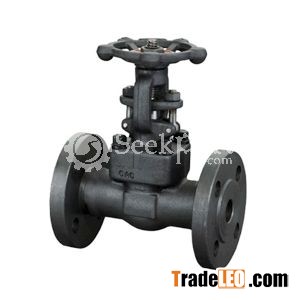

1) Forged Gate Valve Features
OS&Y, Rising Stem, Bolted Bonnet, Solid / Flexible Wedge Design, Welded Seat Ring, Full Port or Reduced Bore.

2) Gate Valve Standards:
*Design: API600, API6D, API602, ASME B16.34, ISO 10434, ISO 14313
*Face to Face: ASME B16.10, DIN 3202
*Connection End: ASME B16.5, ASME B16.25, ASME B16.11, ASME B1.20.1
*Test: API598, API6D

3) Gate Valve Size: 1/2" to 2"/ DN15 to DN400
4) Gate Valve Pressure: Class150 to Class 2500/ PN16 to PN420
5) Gate Valve End connections: Flanged, Butt welded, Socket weld, Threaded
6) Gate Valve Operation: Manual, Gear, Pneumatic, Hydraulic and Electric Actuator
7) Gate Valve Material: WCB, WCC, WC6, WC9, LCB, LCC, LF2, A105, CF8, CF8M, CF3, CF3M, F11, F316 etc.
