Carbon steel flanged globe valve - Sell

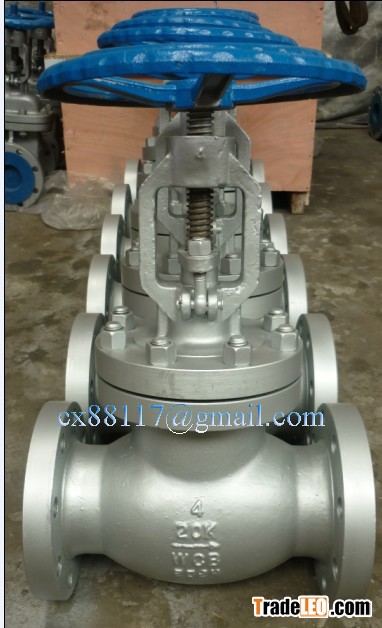

Carbon steel flanged globe valve

2016-10-23 07:24 Views:259

Price:Negotiable
Brand:Dongjin
Model:J41H-10K

JIS flanged globe valve
Material: WCB, Forged steel, SS304 SS316 SS316L, etc.
Specifications: DN15-DN600
Standard: GB, JIS, ANSI,
Pressure: 1.6Mpa~32Mpa(150LB~600LB) 5k~63k
End Connection: Flanged, Welded, Threaded End
Brand: China Dongjin
Working Temperature: -160~550
Type: Full bore
Medium: Water, Oil, Gas Nitric Acid, etc.
Model: J41W-150LB J41W-300LB J41W-600

Main use
Law orchid connectivity of cutoff valve compliant male call the press PN1.6~16 Maps, working temperature-29~550 C oil, chemical engineering, make a medicine and turn fatty, the piping of electric power craft etc. Various work condition up, cutting or switch on piping dielectric. Drive a mode to there is a hand operation, gear drive, electrodynamics and gas moving etc.

Standard
Design and Manufacture Face to face/ End to end Flange Dimension Butt welding dimension Pressure Temperature Lating Inspection and Test
ANSI B16.34 BS1873 ANSI B16.10 ANSI B16.5 ANSI B16.25 ANSI B16.34 API 598

DN		150Lb RF Dimensions mm								Weight
mm	in	L	D	D1	D2	b	n-φ d	H	D0	Weight
15	1/2	108	89	60.5	35	11.2	4-16	241	100	6.9
20	3/4	117	98	69.9	43	12.7	4-16	241	100	9.8
25	1	127	108	79.2	51	14.2	4-16	242	125	13.5
32	11/4	140	117	89	63	16	4-16	280	160	19.5
40	11/2	165	127	98.6	73	17.5	4-16	286	160	28.5
50	2	203	152	120.7	92	19	4-19	368	200	18
65	21/2	216	178	139.7	105	22.4	4-19	387	200	30
80	3	241	190	152.4	127	24	4-19	411	250	41
100	4	292	229	190.5	157	24	4-19	454	250	64
125	5	356	254	216.0	186	24	8-22.5	455	350	86
150	6	406	279	241.3	216	25.4	8-22.5	541	350	113
200	8	495	343	298.5	270	28.4	8-22.5	651	450	178
250	10	622	406	362.0	324	30.2	12-25.4	800	450	270
300	12	698	483	431.8	381	32	12-25.4	1231	600	350
350	14	787	533	476.3	413	35	12-29	1450	600	460
400	16	914	597	539.8	470	36.6	26-29	1645	600	590
