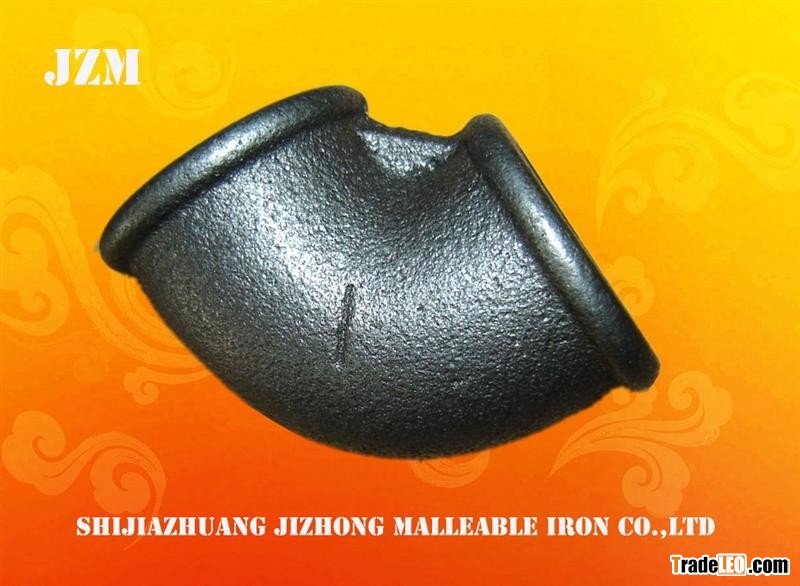

Brand:HG JZM TOPI
Model:90
| Material | Iron |
| Technics | Casting |
| Type | Elbow |
| Place of Origin | Hebei, China (Mainland) |
| Model Number | 90 |
| Brand Name | JZM EE EF TOPI HG |
| Connection | Female |
| Shape | Equal |
| Head Code | beaded |
| size | 1/8"-6" |
| surface | black |
| degree | 90 |
| thread | BS ASME DIN |
| usage | gas, water, oil, stearm |
| certificate | ISO SGS CIQ TUV UL |
High Quality Products
Technical Parameters
Materials: ISO 5922 ANSI/ASME/A197-79 DIN1692
Finishing: Hot dipped galvanized, electro galvanized, bake
galvanized, black epoxy, chroming
Dimensions: ISO 49 ANSI/ASME B16.3-85 DIN 2950
Threads: ISO7/1 ANSI/ASME B1.20.1 DIN2999
Mechanical Properties: Tensile strength ≥330MPA
elongation ≥8% hardness MINIMAL HB150
Hydraulic Test: work pressure max 1.5 MPA test pressure
max 2.5MPA
Temperature: -20°C-120°C
Production Name | Malleable iron pipe fittings |
Size | 1/8” - 6” 1/4”×3/8” - 6”×5” |
Material | Malleable Iron(Cast iron) |
Connection | Male/Female M&F |
Standard | BS(EN10242)Standard,ISO49/ISO5922/ISO7/1 |
DIN(EN10242)Standard,DIN2950/1692/2999 | |
ANSI Standard,ASTM16.3/B16.14/B16.39/B1.20.1 | |
Application | Water,Steam,Air,Gas and Oil pipes etc |
Models | Banded with or without ribs,Beaded with or without ribs,Plain |
Surface | Hot-dipped galvanized,Electrical galvanized,Bake galvanized, Normal black,Shining back |
Grades | Heavy series,Standard series,Medium series,Light series |
Shape | Equal,Reducing |
Package | Bag,Cartons,Wooden cases,Pallets, single plastic bag per piece with barcode. Carton dimension:470mm*310mm*200mm 800 cartons per 1*20'FCL |
Certificate | SGS,TUV,CIQ,UL, BSI,ISO9001 |
Threaded | ISO7/1 ANSI/ASME B1.20.1. DIN 2999 NPT |
Packaging Detail: | Boxes, cartons, pallets, single plastic bag per piece with barcode Carton dimension:470mm*310mm*200mm 800 cartons per 1*20'FCL |
