A: Usage:
To process block with straight or swallow-tail slots etc.
B: Equipment components:
Stand, feeding platform, 1 set of sawing device, 2 sets of milling device, 2 sets of chamfering device, dust collection device (optional), PLC control system
C: Processing procedure:
Clamp （processing product）---feed---saw the front end---mill and chamfer the front end into slot---feed and discharge---cut off by saw---mill and chamfer the other end into slot---discharge……….
D: Processing product (raw material) dimensions:
Length: 1000-3200mm
Width (height): 25-60mm
Thickness: 1.5-10mm
Overlapping thickness once: 100-400mm

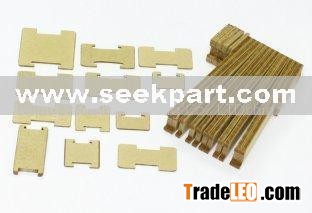

E: Processed block dimensions:
Length: 30-400mm
Width: 25-60mm
Thickness: 1.5-10mm
F: Specifications:
Speed of chamfering tool | 4500r/min | |
Speed of grooving tool | 7000r/min | |
Speed of circular saw | 4000r/min | |
Dimensions | 6000(L)′3000(W)′1800(H)mm | |
Power supply | 380V, 50Hz | |
Motor output power | Feeding servo motor | 1kW |
Chamfering motor | 1.1kW′2 | |
Grooving motor | 1.1kW′2 | |
Sawing motor | 4kW | |
Milling drive motor | 1.5kW | |
Discharging drive servo motor | 1.5kW | |
Sawing drive motor | 0.75kW | |
Dust collection motor | 5.5kW′2 | |
Condensed air requirements | 0.5Mpa, 90m3/min | |
