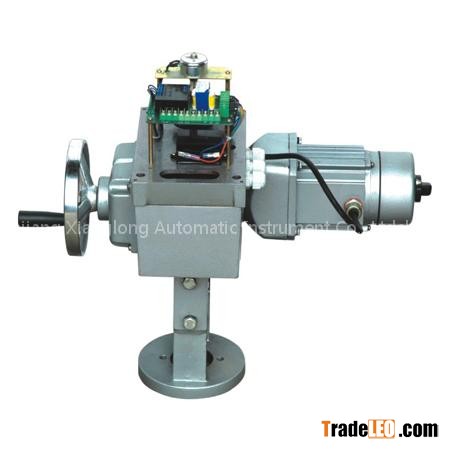

DKZ (ZKZ) linear motion electric actuator is driven by single-phase ac power supply, receives unified standard signals 4mA-20mAdc (or 0-10mAdc) as matching servo amplifier, and transfers such signal into corresponding mechanical straight-line displacement. It is simple to operate. Double-seat valve and telescopic valve carries out the regulation of the process system.
Characteristics
●Position transmitter adopts gear drive to ensure the reliable and accurate limit.
●Adopt precise conductive plastic potentiometer with angle indication, convenient and easy to understand.
●Circuit adopts modular structure sealed by epoxy resin after low-temperature aging process to ensure stability and reliability.
●Electric motor adopts outdoor servo motor with overload protection.Model descriptionsDKZ-310 (CXH)DK: common type Z: linear motion 310: output powerH: with H--outdoor type; no H--standard type (options)C: with C--feedback signal 4-20mA; no C--feedback signal 0-10mA X: with X--electric limit; no X—no electric limit
