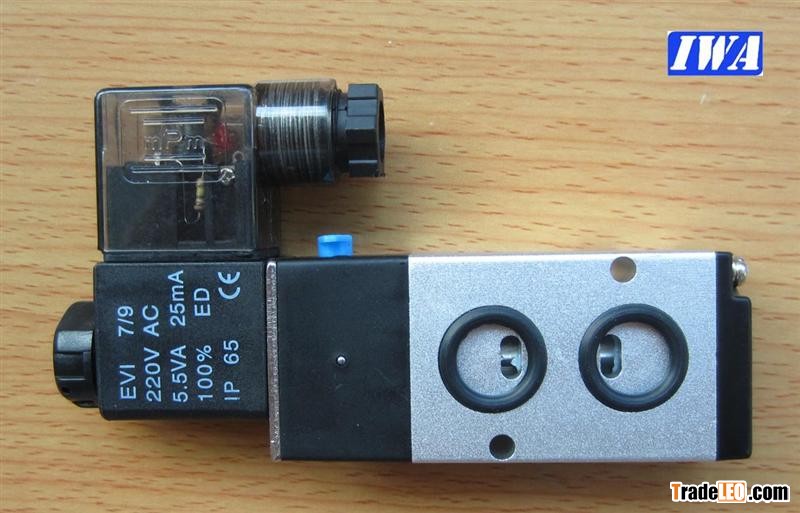

NAMUR Solenoid Valve
1.size:1/8-1/2
2.material:AL
3.certificate:CE
4.long life cycle

Product Description

Working Medium:        40 Micron Filtered Air
Motion Pattern:          Internally Piloted Type
Type:                Five-Piston Two-way or Five-

piston Three-way
Working-pressure:        0.15~0.8MPa
Max. Pressure Resistance:   1.2MPa
Operating Temperature     -5~50C
Voltage Range:          10%
Power Consumption:      AC: 4.5V DC: 3.5W
Insulation & Protection Class: IP65
Wiring Form:            Lead wire or connector type
Highest Action Frequency:   5 Cycle / Sec
Shortest Excitation Time:    0.05 Second

Namur face solenoid valves are easily be assembled in pneumatics system to control the direction of the gas medium, with the power of the compressed air, this valve will control the pneumatic actuators' motion to make press or other process.
