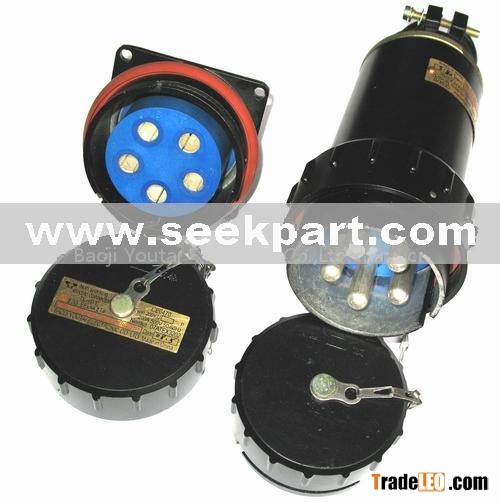

Model:150YT
·ATEX Certified---for zone 2-IIC hazardous environment.Certificate number 07 ATEX3202.
·CQST Certified--- examined and tested for qualification by China National Quality Supervision and Test Center for Explosion Protected Electric Products (CQST) and obtained the explosion-proof certificate.
·Standard---IEC 60079-15:2001 Electrical apparatus for explosive gas atmospheres Part 15:Type of protection n,MOD(GB 3836.8-2003).
Main Technical Features
Explosion-proof Sign | ExnAIIT4 |
Working Voltage | 500V |
Working Current | 15A~200A |
Ambient Temperature | -20oC~+60oC |
Withstanding Voltage | 3000V(1Min) |
Protection Degree | IP54 |
Insulation Resistance | ≥1000MΩ |
Contact resistance | ≤ 1mΩ |
Life Duration | 1000 times |
Both pin and jack could be inserted in plug or socket | |
Product Description
Shell material: Die cast aluminum
Connection type: Crimp
Wire Gauge: 0.5-120mm2
Flammability: UL94-V0
Degree of pollution: 3(C)
Overvoltage: III
Benefits
·Rugged:All components have aluminum housings
·Minimal heat build-up
·Energy savings
·Low maintenance costs
·Perfect function over 1000 mating operations
·Longer product life
