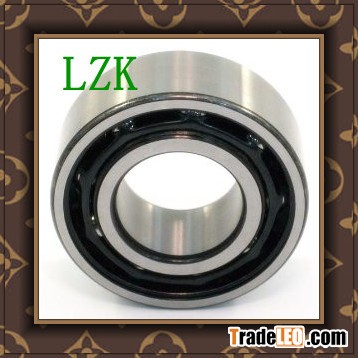

GCr15  materterial angular contact ball bearing

Description:

Angular contact ball bearing The bearing runs in higher limit rotating speed. It can simultaneously take radial and axial load.

Angular contact ball bearings are available in single row and double row configurations.

• Able to accommodate both radial and thrust loads
• Suitable for high speed operation
• Open and sealed versions available
• Highly rigid
• Standard: DIN 616, DIN 628
• Series:
  - single row: 7200, 7300
  - double row: 3200, 3300, 5200, 5300

Typical applications:

• Gearboxes
• Agricultural machinery
• Pumps and compressors
• Ventilators
• Machine tools
• etc.

Series Item No. Bore Diameter(mm)

7000  7000~ 7060  10~300

7200  7200~7248  10~240

7300  7300~7340  10~200

7900  7906~7932  30~160

3200  3200~3222  10~110

3300  3302~3322  15~110

5200  5200~5220  10~100

5300  5303~5316
