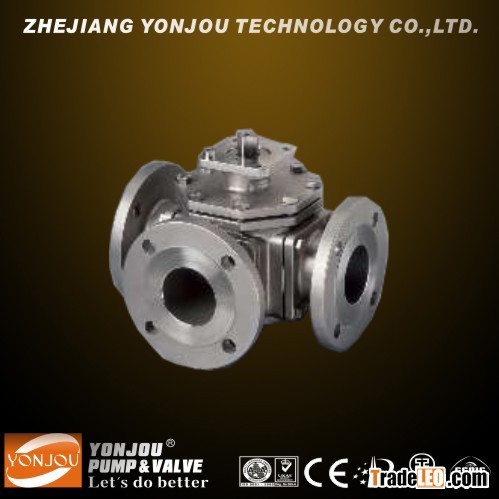

Three Way Ball Valve
Three Way Ball Valves have especially been designed to permit a 90° connection between two pipes of same bore. The special construction of the valves is such as to allow a smooth flow of fluids with minimum pressure drop and permit the pig to pass through the pipe without any interruption of the seal between the pig and the pipe.
The valve is recommended for use in pipelines, where pigs or scrapers are to be diverted for a quick distribution of the fluid without pollution and with minimum pressure drop.
Specification:
Design ASME B16.34/API 6D
Face to Face Manufacturer Standard
End to End ASME B16.10
End Flange ASME B16.5
BW End ASME B16.25
Test API 6D
Fire Safe Test API 607/API 6FA
Materials of Three-Way Ball Valves
| No. | Part | Material |
| 1 | Ball | A351-CF8, CF8M, CF3, CF3M, Duplex |
| 2 | Body | A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex |
| 3 | Stem | ASTM A105+ENP A182-F6, F316, F316L, F304L,17-4PH, F51 |
| 4 | Thrust Washer | PTFE |
| 5 | Packing | PTFE Graphite |
| 6 | Screw | ASTM A193-B7, B8 |
| 7 | Gland Flange | A216-WCB A351-CF8 |
| 8 | Lever | A216-WCB |
| 9 | Limited Plate | 1015+Cr. Carbon Steel+Cr. |
| 10 | Retainer | Carbon Steel |
| 11 | Seat | PTFE RTPFE PEEK PPL |
| 12 | Gasket | Stainless Steel+Graphite S.S.316+Graphite |
| 13 | Bonnet | A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex |
| 14 | Stud | ASTM A193-B7, B7M, B8, B8M |
| 15 | Nut | ASTM A194-2H, 2HM, 8, 8M |
