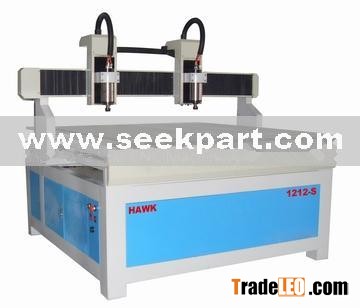

Model:XK-1212
multi-spindle advertising cnc engraver machine
Application:
Efficient produce a variety of wood procudts, acrylic ,plastic membrane system and large scale cutting.Advertising signs,logo making,acrylic cutting,plastic molding,decorative products,a variety of materials,production fo advertising and others decarations.
Features
1.The body of the equipment is made with welded,it’s too firm to be out of shape.
2.with T-slot table,holding the materials with claps,high precision,you can do many for sign making ,wood artwook
3.Compatible type3,wentai,artcam and other softwares.
4.Select the advanced DSP operating system,completely off-line work,do not take up any computer resource
.Main technical parameters
multi-spindle advertising cnc engraver machine
Description | Parameter |
Table Size | 1260*1420mm |
X.Y.Z axis working area | 1200*1200*120mm |
Table surface | To-slot table |
frame | Cast Aluminum/Welded steel |
X.Z structure | Ball screw |
Y structure | Ball screw,Hiwin Rail Liner Bearing |
Max power consumption(without spindle ) | 0.8kw |
Spindle power | 1.5KW(water cooling) |
Spindle speed | 24000rpm |
Max speed | 10000mm/min |
Max cutting speed | 6000mm/min |
Working Voltage | AC220/50/60HZ 2 Phase(option:220v) |
Software | Type3 software/weitai software (option:Artcam software) |
Operating system | Ncstudio |
Command Code | G code |
XYZ System Resolution | ±0.025mm |
X,Y,Z Reposition accuracy | ±0.05mm |
Running Environment Temperature | 0~45 degree |
Packing size | 1710*1750*1650mm |
Collect | ER 16 |
