Brand:SEAWARD

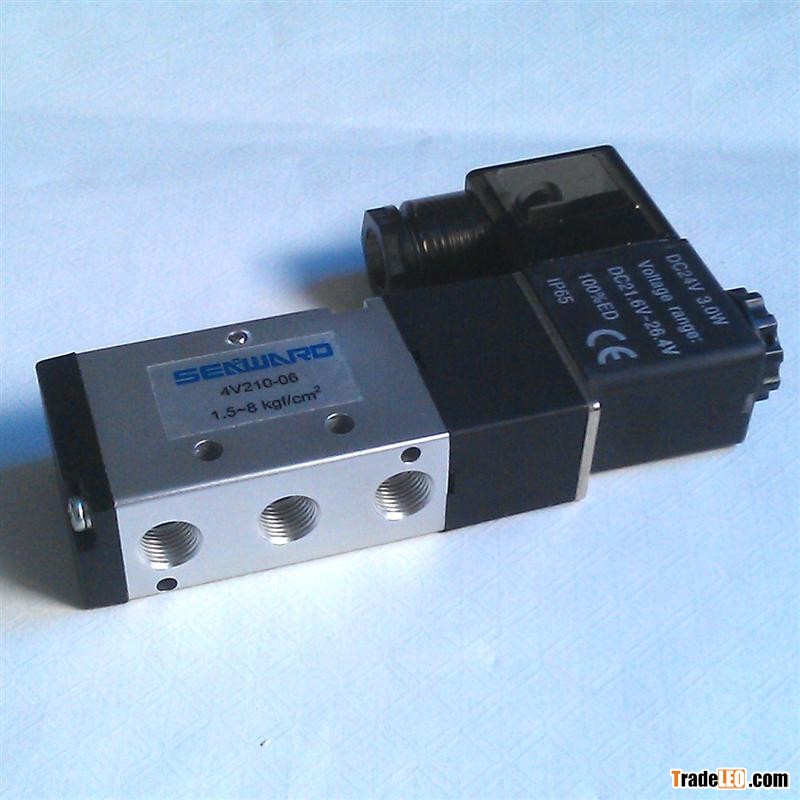

Model:4V210-06
Pilot-oriented mode: optional for internal or external;
Structure in sliding column mode: good tightness and sensitive reaction;
Three position solenoid valves have three kinds of central function for your choice;
Double control solenoid valves have memory function;
Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
No need to add oil for lubrication;
It is available to form integrated valve group with the base to save installation space;
Affiliated manual devices are equipped to facilitate installation and debugging;
Several standard voltage grades are optional;
Type | 4V210-06 | 4V230C-06 | 4V210-08 | 4V230C-08 |
4V220-06 | 4V230E-06 | 4V220-08 | 4V230E-08 | |
| 4V230P-06 |
| 4V230P-08 | |
Working Medium | Air (to be filtered by 40μm filter element) | |||
Action | Internal Piloted | |||
Port Size | In=out=exhaust=1/8 | In=out=1/4,exhuast=1/8 | ||
Orifice Size | 14.0mm2 (CV=0.78) | 12.0mm2 (CV=0.67) | 14.0mm2 (CV=0.78) | 12.0mm2 (CV=0.67) |
Valve Type | 5 port 2 position | |||
Operating Pressure | 0.15-0.8MPa(21-114Psi) | |||
Proof Pressure | 1.5MPa(215Psi) | |||
Temperature | -20~70℃ | |||
Material of Body | Aluminum Alloy | |||
Lubrication | Not required | |||
Voltage Range | AC: ±15％, DC: ±10％ | |||
Standard Voltage | AC110V,AC220V,AC24V,DC24V,DC12V | |||
Power Consumption | AC:3.5VA DC:3.0W | |||
Protection | IP65(DIN40050) | |||
Temperature Classification | B Class | |||
Electrical Entry | Terminal / Grommet | |||
Max. Frequency | 5 Cycle/sec | 3Cycle/sec | 5 Cycle/sec | 3Cycle/sec |
Weight | 4V210-06:220g 4V220-06:320G | 360G | 4V210-08:220G 4V220-08:320G | 360G |
Activating Time | 0.05 Second and below | |||
