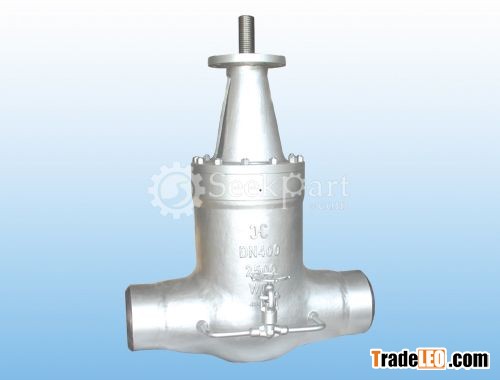

Product Name Welded End Connection Gate Valve Series Size 2"-24" Rating Class 150-2500 Design And Manufacture AMSI B16.34,API600 API6D,BS1414 Face To Face(end to end) ANSI B16.10,API6D Butt welded end ANSI B16.25 Test and inspection API598,API6D Body Material A216-WCB/WCC, A351-CF8, A351-CF8M, A351-CF3,A351-CF3M

Material Specification PARTS NAME MATERIAL WCB/TRIM1 WCB/TRIM5 WCB/TRIM8 ?CF8/304 CF8M/316 Body A216-WCB A216-WCB A216-WCB A351-CF8 A351-CF8M Gasket Soft Iron+Graphite Or 304+Graphite 304+Graphite 304+Graphite Seat Ring A105+13Cr A105+STL A105+STL A351-CF8 A351-CF8M Gate A216-WCB+13Cr A216-WCB+STL A216-WCB+STL A351-CF8 A351-CF8M Stem A182 F6A A182 F6A A182 F6A A182 F304 A182 F316 Backseat Ring A182 F6A A182 F6A A182 F6A A351-CF8 A351-CF8M Stem Packing Graphite Gland A182 F6A A182 F6A A182 F6A A182 F304 A182 F316 Gland Eyebolt A193 B7 A193 B7 A193 B7 A193 B8 A193 B8M Eyebolt Nut A194 2H A194 2H A194 2H A194 8 A194 8M Eyebolt Pin ASTM A36 ASTM A36 ASTM A36 SS304 SS316 Gland Flange A216-WCB A216-WCB A216-WCB A351-CF8 A351-CF8M Bonnet Bolt A193 B7 A193 B7 A193 B7 A193 B8 A193 B8M Bonnet Nut A194 2H A194 2H A194 2H A194 8 A194 8M Bonnet A216-WCB A216-WCB A216-WCB A351-CF8 A351-CF8M Nipple Carbon Steel Stem Nut A439 D2 Yoke Sleeve Nut Carbon Steel Hand Wheel Ductile Iron Hand wheel Nut Carbon Steel Set Screw A193 B7
