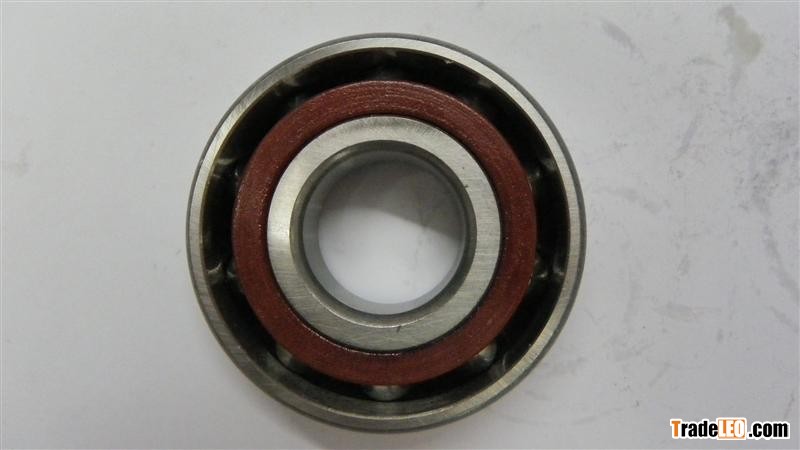

Model:7005AC
HTHN brand bearing with high quality and low price.have had morethan ten years experience.
all type of angular contact ball bearing we can do.
We have various brands of bearings: NSK, FAG,SKF, NTN,TIMKEN,NACHI,IKO, INA, KOYO, LYC ,HRB, WZW etc.
Our own brand is HTHN bearings with good quality and competitive price.
We can also supply various types of bearings according to your sample and design.
company beijing HTHN technology development co.,ltd
website http://bjhthn.com
tel 86-10-51158000
fax 86-10-51155966
msn hangtianhaina@live.cn
Angular Contact Ball Bearing
Description of the bearing:
a)The bearings are available in open and sealed versions
b)Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
c)The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle"α":
α=15° | Designation suffix C |
α=25° | Designation suffix AC |
α=30° | Designation suffix A |
α=40° | Designation suffix B |
d) Four-point contact ball bearings are radial single row angular contact ball bearings with raceways that are designed to support axial loads acting in both directions. Radial loads can be supported up to a certain fraction of the axial load. These bearings take up considerably less axial space than double row bearings.
e) cage of the bearing: polyamide, sheet steel or brass cages.
f)The angular contact ball bearing is of separable design the outer ring with ball and cage assembly can be mounted separately from the two inner
