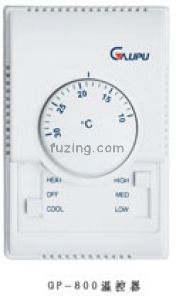

Summary: GP800 series thermostat is an ambient thermostat used on the control of the fan coil and the air valve in the air-conditioning system with the functions of cold-and-hot switch, ambient temperature check, on/off of the blower fan or valves, to serve the purpose of adjusting the ambient temperature. It is widely used in hotels, restaurants, office buildings, industry and civil buildings.

1. It outer shell is of ABS anti-flaming material with elegant appearance.
2. Directly fixed on the wall or standard wiring box. Quick wiring and convenient operation in control.
3. The sensor is a thermistor controlled by the electronic logic circuit to achieve automatic constant temperature indoors

Product Model
Name Model Characteristics
Thermostat GP800A Control switch type motorized air valve or 3-wire water valve
Thermostat GP800B Control fan coil and motorized valve
Thermostat GP800C Control fan coil
Thermostat GP800D Control fan-coil and 3-wire motorized valve
Technical parameters:

Control standard              10-30ºC
Control precision              ±1ºC
Working voltage               AC220-240V   50-60HZ
Environmental temp.           -20°~55°; humidity < 95%
Temperature-sensing element    thermistor
Outer size                   85mm×130mm×43mm
Installing hole distance         60mm standard wiring box
Wiring diameter              wire section diameter less than or equal to 1.5mm×mm
