Material: Aluminum Die-cast Alloy
Ambient temperature: -25℃~60℃
Power supply: AC220/AC380V
Contact type: Passive contact
Anti-rust, anti-corrosion
Arbitrary installation (At any angle)

Output torque:150NM

Stroke time: 30sec

Starting current:0.58A

Working current: 0.5A

Motor: 40W/F

Weight:4.5KG

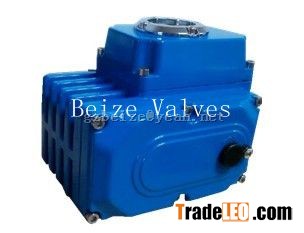

Quarter-turn (rotary) electric actuator, on-off type, adjusting type

Protector: Over heating protect, over loading protect

Suitable Valves: ball valves, butterfly valves, cock valves, plug valves, louver valves, etc.

Widely used in water treatment, chemical industry, petrol industry, paper making, mining, power station, heat supply, etc.

Model available: BWQ-03~BWQ-200

Hexagon crank handle for manual control is attached.(Use it only when the power supply is disconnected.)

Waterproof power supply connector is attached.

Indicator types available: flat face position indicator and ball face position indicator.

Characteristics:

1. Aluminum alloy die-casted box is exquisite, light, tight, and able to reduce the electromagnetic  interference.

2. Easy installation with single phase power supply and simple circuit

3. Precise transmission.

4. Easy connection with valves, free grease, free point inspection

5. AC1500V Dielectric Strength Test passed, F insulated motor, safety guaranteed.
