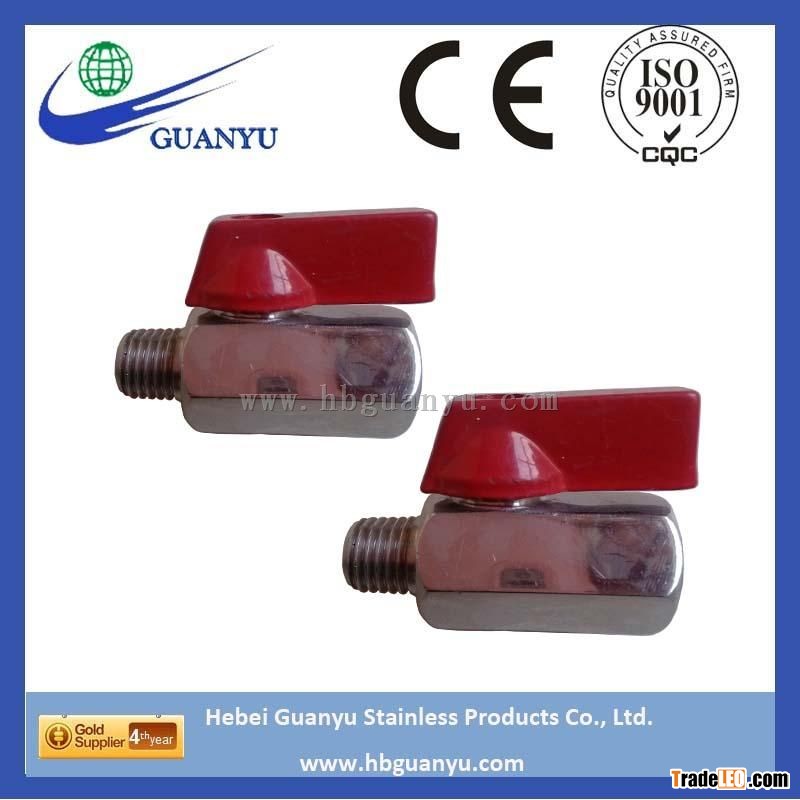

Mini stainless steel ball valve threaded end, 1000wog

1. Description:

Materials of main parts:

Body: CF8M

BALL: CF8M

Gasket: RPTFE

Cap: CF8M

Ball Seat: RPTFE

Stem: 316

Thurst Washer: RPTFE

Stem Packing: RPTFE

Gland Nut: 316

Handle: 304

Spring Washer: 304

Nut: 304

Handle Cover: Plastic

Main size: 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2"2" 2-1/2" 3" 4"

For general chemical and industial service

Working Pressure: 6.3MPA, 10MPA, 15MPA / 1000PSI, 1500PSI, 2000PSI

Applicable Medium: Water, Oil, Steam, Nitric acid, Acetic acid.

2. FEATURES:

Blow-out Proof Stem

Investment Casting Body & Cap

Pressure Blance Hole inBallSlotFullPort

Various Thread Standard Available: NPT BSP BSPT DIN2999

Locking Device Available

3. STANDARD:

Design: ASME B16.34,API608

Wall Thickness:ASME B16.34,GB12224

Face to Face:DIN3202-M3

Pipe Thread: ANSI B1.20.1, BS 21/2779, DIN 259/2999, ISO 228

Inspection & Testing:API 598

4. Shipping, Packing and Payment

LoadingPort:FOBTianjinPort

Packing: Bubble bag/ carton/ wooden case

Delivery time: Within 30 days according to order quantity

Payment: 30% TT in advance, 70% TT against B/L/ DP/ LC
