Brand:GY
Model:BT-2F
Specifications
Stainless Steel Ball Valve
DN: 6-100mm, Full Port
Material:SUS304/316
Pressure:1000PSI / PN64
Medium:water,oil,gas

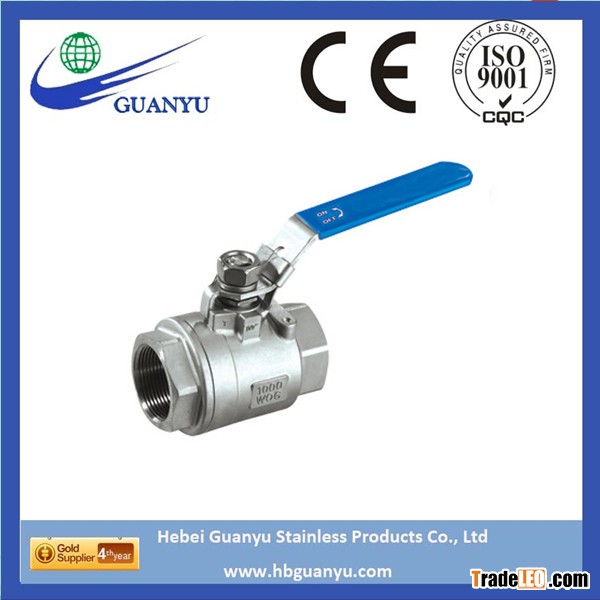

2PC Thread Stainless steel Ball Valve (BT-2F Full Bore 1000PSI)
CE & ISO9001 Approved
Design Standard
Design: DIN3202/ANSI B 16.34
Connecting: NPT/BSP/DIN2999 thread (F/F)
Power: Manual(lever handle)
Options: Locking device
Body Processing: Investment casting
Application:
For general chemical and industrial services
Working Pressure: 6.3MPa, 1000PSI, PN64
Temperature: Normaltemperature (-25~180 degree)
Applicable Medium: Water, Oil, Gas
Body Material: CF8, CF8M, CF3M
Dimension: 1/4", 3/8", 1/2", 3/4", 1"1 1/2'', 2'', 2 1/2'', 3'', 4''
Features & Benefits
1) Investment casting body
2) Blow-out proof stem and safe prossure-reducing hole
3) Compact assembly
4) Locking device
5) Stainless steel material, highly corrosion resistance
Parameters
Size/item | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 |
D | 12.5 | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 94 |
L | 51 | 51 | 63 | 74 | 86 | 98 | 106 | 122 | 159 | 182 | 226 |
H | 45 | 45 | 46 | 51 | 65 | 69 | 85 | 93 | 116 | 125 | 166 |
W | 103 | 103 | 103 | 126 | 144 | 144 | 189 | 189 | 224 | 224 | 295 |
Wgt/kg | 0.227 | 0.212 | 0.29 | 0.50 | 0.8 | 1.2 | 1.9 | 3.0 | 6.1 | 9 | 17.5 |
MATERIAL LIST
ITEM | DESIGNATION | MATERIAL |
1 | PLASTIC COVER | PLASTIC |
2 | HANDLE | 304 |
3 | GLAND NUT | 304 |
4 | STEM NUT | 304 |
5 | THRUST WASHER | 304 |
6 | STEM PACKING | PTFE |
7 | STEM SEAL | PTFE |
8 | BODY SEAL | PTFE |
9 | CAP | CF8/CF8M |
10 | BODY | CF8/CF8M |
11 | SEAL | RPTFE |
12 | BALL | CF8/CF8M |
13 | STEM | 304/316 |
