SINGLE-ROW DEEP GROOVE BALL BEARINGS

AVAILABLE SERIES

600 - 6000 - 6200 - 6300 - 6400 - 16000

61800 - 62200 2RS - 63000 2RS – 61900

AVAILABLE VERSIONS

Z(R) - ZZ(R) : one or two metal shields

RS(R) - 2RS(R) : one or two rubber seals

NR : circular groove on the outer ring with snap ring

N : circular groove for snap ring on the outer ring

Bearings sealed and shielded on both sides are delivered filled with Lithium based grease and can be used at temperatures between-30°Cand +110°C.

YNN is offering the most popular ball bearings also in stainless steel, in ZZ and/or 2RS version.

Material used :

Stainless steel quality AISI440 Cfor outer ring, inner ring and balls, stainless steel quality AISI 300 for cage and for the metal ring inside the seals

The single-row deep groove ball bearings are available in a wide variety of size and design. Single-row deep groove ball bearings are the most popular type of all rolling bearings. They are non-separable, suitable for high and very high speed applications and they require little maintenance.

Due to the deep grooves in the raceways of inner and outer ring, the single-row deep groove ball bearings can take double direction radial and axial loads.

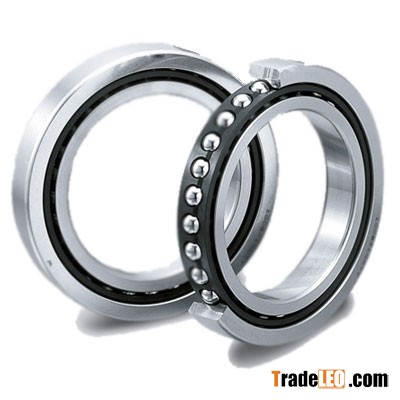

SINGLE- & DOUBLE-ROW ANGULAR ConTACT BALL BEARINGS

AVAILABLE SERIES

Single-row:                                             Double-row:

7000 - 7200 - 7300                                   3200 - 3300

AVAILABLE VERSIONS

B: standard version - contact angle of 40°

A: contact angle of 25°

C: contact angle of 15°

All versions are also available for paired (universal matching) use, suffix BCB

Angular contact ball bearings are non-separable and are designed to accommodate radial and axial loads. They can carry the axial loads in one direction only. For this reason, they are often mounted in pair. The angular contact ball bearings
are suitable for high speed applications

SELF-ALIGNING BALL BEARINGS

AVAILABLE SERIES

1200 - 1300 - 2200 - 2300

AVAILABLE VERSIONS

Pen: standard version of the basic design

2RS: sealed

K: tapered bore (taper 1:12)

K-2RS: combination of the above

Self-aligning ball bearings have two rows of balls and they have a sphered raceway in the outer ring. This feature allows angular mis-alignment of the shaft in relation to the housing.

THRUST BALL BEARINGS

Single acting :                                        Double acting :

51100 - 51200 - 51300 - 51400                  52200 - 52300 – 52400

Thrust ball bearings are manufactured in two versions: single and double acting.  Both designs can carry heavy axial (or thrust) loads in two directions.  They cannot be used where radial loads are present.

A thrust ball bearing is separable and is made up of a shaft washer, a
housing washer with flat support surface and the ball and cage assembly.
