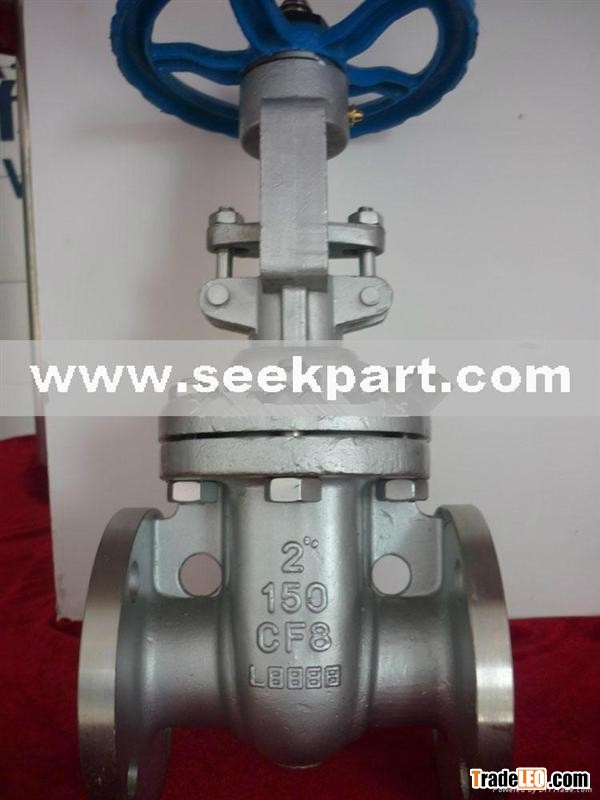

API Cast Steel Flange End Gate Valve Z41H
2016-10-23 13:16  Views:102
Price:Negotiable
Model:Z41H-150LB
Send Inquiry

Product Details
Design and ManufactureANSIB16.34,API600,API603,BS1414
Face to face(end to end)ANSIB16.10,API6D
Flanged connection2"~24" TO ANSIB16.5,22",26"~36" TO MSS-SP-44 to API605 on Request
Test and inspectionAPI598,API6D
Butt welded endANSIB16.5

A. Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
B. Grub screw: Secures yoke nut in the bonnet
C. Grease nipple: Supplies lubricant to the mating parts

Materials
NO.Part nameMaterial
19Grease nippleBrass
18Grub screwCarbon steel
17Hand wheel nutCarbon steel
16Hand wheelMalleable lron/cast steel/ ductile lron/fabricated steel
15Yoke nutCarbon steel/SS
14Eye bolt and nutA 193 B7/A194 2H~A193 B8/A194 8
13PinCarbon steel/stainless steel
12Stem nutA 439-D2/cu-alloy
11Gland flangeCarbon steel/equivalent to body material
10GlandStain less steel
09Back seatStain less steel
08StemStain less steel
07Seat ringCS+SS/SS/SS+STL
06WedgeMaterial see body



NO.Part nameWCBLCBWC6WC9
05Bolt and nutA193 Gr B7/A194 Gr 2HA320 Gr L7/A194 Gr 4A193 Gr B16/A194 Gr 4/7A193 Gr B16/A194 Gr 4/7
04Gland PackingGraphiteGraphiteGraphiteGraphite
03GasketSpiral wound/Soft lronSpiral wound/Soft lronSpiral wound/SS304Spiral wound/SS304
02BonnetA216 Gr WCBA352 Gr LCBA271 Gr WC6A271 Gr WC9
01BodyA216 Gr WCBA352 Gr LCBA271 Gr WC6A271 Gr WC9



NO.Part nameC5C12CF8CF8M
05Bolt and nutA193 Gr B16/A194 Gr 4/7A193 Gr B16/A194 Gr 4/7A193 B8/A194 8A193 B8M/A194 B8
04Gland PackingGraphiteGraphiteGraphiteGraphite
03GasketSpiral wound/Soft lronSpiral wound/Soft lronSpiral wound/SS304Spiral wound/SS316
02BonnetA217 Gr C5A217 Gr C12A351 Gr CF8A351 Gr CF8M
01BodyA217 Gr C5A217 Gr C12A351 Gr CF8A351 Gr CF8M
