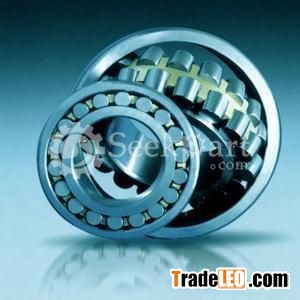

self-aligning roller bearing 22316C - Sell

self-aligning roller bearing 22316C

2016-10-23 15:02 Views:212

Price:Negotiable
Brand:LYC
Model:22316C

Adjusts the heart roller bearings to have two rows rollers, mainly withstands a diameter load, simultaneously can also receive is appointed a direction the axial loading. Has the high radial load ability, is suitable specially under the heavy load or the oscillating load works, but cannot withstand the pure axial loading. This kind of bearing addendum circle roller convener is the ball face shape, therefore its accent heart performance is good, can compensate the proper alignment error.

principal dimensions(mm)				designation		basic load ratings		Limited speed		Weight(kg)
d	D	B	Bo	New Code	Old Code	Cr Dynamic	Cor Static	Grease	Oil	Weight(kg)
25	52	18	5.5	22205CA	53505H	40	41.5	5500	7000	0.18
30	62	20	5.5	22206CA	53506H	33.5	38	5000	6800	0.295
35	72	23	5.5	22207CA	53507H	46	59	4400	5800	0.45
40	80	23	5.5	22208	3508	49.5	69	3900	5200	0.536
	80	23	5.5	22208CA	53508H	75	84	5000	6700	0.536
	80	23	5.5	22208C	53508	75	84	5000	6700	0.536
	90	33	5.5	22308	3608	84	106	2900	4000	1.04
	90	33	5.5	22308CA	53608H	108	125	3900	5200	1.04
	90	33	5.5	22308C	53608	108	125	3900	5200	1.04
45	85	23	5.5	22209	3509	52	73.2	3600	4800	0.6
	85	23	5.5	22209CA	53509H	80	91.2	4700	6400	0.6
	85	23	5.5	22209C	53509	80	91.2	4700	6400	0.6
	100	36	5.5	22309	3609	105	140	2700	3600	1.42
	100	36	5.5	22309CA	536096H	138	160	3500	4500	1.42
	100	36	5.5	22309C	53609	138	160	3500	4500	1.42
50	90	23	5.5	22210	3510	57.2	80	3300	4400	0.64
	90	23	5.5	22210CA	53510H	83	96.7	4400	6100	0.64
	90	23	5.5	22210C	53510	83	96.7	4400	6100	0.64
	110	40	5.5	22310	3610	130	170	2400	3100	1.88
	110	40	5.5	22310CA	53610H	177	200	3100	4200	1.88
	110	40	5.5	22310C	53610	177	200	3100	4200	1.88
55	100	25	5.5	22210	3510	74	98	3000	4000	0.85
	100	25	5.5	22210CA	53510H	101	118	4000	5600	0.85
	100	25	5.5	22210C	53510	101	118	4000	5600	0.85
	120	43	5.5	22310	3610	155	205	2200	2700	2.43
	120	43	5.5	22310CA	53610H	213	245	3000	3800	2.43
	120	43	5.5	22310C	3511	213	245
