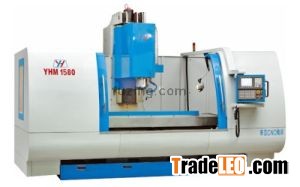

Product Feature of CNC Milling Machine:
1. Military quality and strength
2. the best key components in the world
3. manufactured strictly according to European Quality Standard and checked by RENISHAW detector
4. 10 years experiences and accumulation

description of CNC Milling Machine:
-The spindle unclamping unloader ensures the service life of spindle bearings.
-All spindle parts have passed high speed dynamic balance test/debugging
-With the function of one-touch zero clearance, it is easy to operate
-The machine tool precision is detected and corrected through ball bar and laser interferometer.
-Installed with high-speed electric spindle, one machine serves several purposes
-The fully-protected metal plate guarantees the safety and environment

Application
communication, model, automobile, tyre, tungsten steel, precision processing, watchmaking, glass, lamps and lanterns, mould, school, army, etc.

Other Information
1. Standard Configuration:
CNC System, Pneumatic Unclamping Cylinder, Full Guard, Automatic Lubrication System, Cooling System, Lighting System, Machine Tool Operating Manual, Tools and Tool Kits

2. Configuration Optional:
Hat-type Tool Changer(T10) , High-speed Electric Spindle (20000rpm) , Spindle of 8000rpm, Four-axis NC Rotary Table, Heat Exchanger for Power Switch Box, Air-Conditioning for Power Switch Box, Automatic Chip Cleaner, Milling Chuck and Detachable Cutter Block

3. System Optional:
SIEMENS CNC System, Central China CNC System, MITSUBISHI CNC System, FAGOR CNC System

Product Specification/Models
CNC Milling Machine:YHM1890

Table Size(mm) : 900×2000
X-axis Travel(mm) : 1800
Y-axis Travel(mm) : 900
Z-axis Travel(mm) : 680
Spindle Speed(rpm) : 6000
Handle Type: BT50
Feed Rate(mm) : 0~10000
T-slot Width(mm) : 22
T-slot Pitch(mm) : 165
Distance from Spindle Center to Upright Track Surface (mm) : 950
Maximum Table Load Capacity (mm) : 1600
Least Input Increment(mm) : 0.001
Repeat Positioning Accuracy(mm) : 0.005
Positioning Accuracy (mm) : 0.01
Main Motor(mm) : 15
Machine Dimensions(mm) : 4900×4200×3600
Machine Weight(mm) : 16000/16350
