Brand:SKF
Model:238/1000CAKF1A/W20
Send Inquiry
Item:238/1000CAKF1A/W20 238/1000 1000*1220*165 Bearing

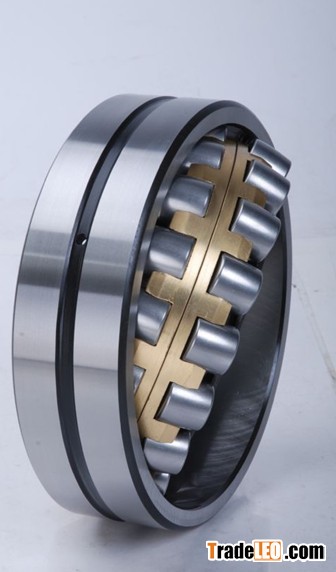

Type: Spherical Roller Bearing
Lubrication: Oil or Grease
Dimensions: 1000mm x 1220mm x165mm/Metric
ID (inner diameter)/Bore: 1000mm
OD (outer diameter): 1220mm
Width/Height/thickness: 165mm
Dynamic load rating Cr: 4,400KN
Static load rating Cor:13,600KN
Limiting Speed:
Grease Lubrication:120RPM
Oil Lubrication: 160RPM
| Basic Dimensions | Designations | basic load rating | Limiting Speed | Weight/KG | ||||
| d | D | B | Cr | Cor | Grease | oil | ||
| 1000 | 1220 | 165 | 238/1000CAKF1A/W20 | 4400 | 13600 | 120 | 160 | 402 |
