YRT395 High precision rotary table bearings for indexing tables and swivel type milling heads

THB YRT bearings consists of thrust/radial housing washer, a thrust/radial shaft, two Axial needle roller and cage assemblies and a group of radial cylindrical roller. They can support radial loads, axial loads from both sides and tilting moments without clearance and are particularly suitable for bearings arrangements with high requirements for running accuracy. Due to the fixing holes in the bearing rings, the units are very easy to fit. The bearings are radially and axially preloaded after fitting.

Bearing features:
1.   High precision: precision at P4, P2.
2.   High rigidity: YRT series bearings are with preload.
3.   High speed: YRTS series bearings can be applied in the high speed working condition.

1. Regular stock list: YRT50, YRT80-TV, YRT100, YRT120, YRT150, YRT180, YRT200, YRT260, YRT325, YRT395, YRT460, YRT580, YRT650, YRT850, YRT950, YRT1030, YRT1200

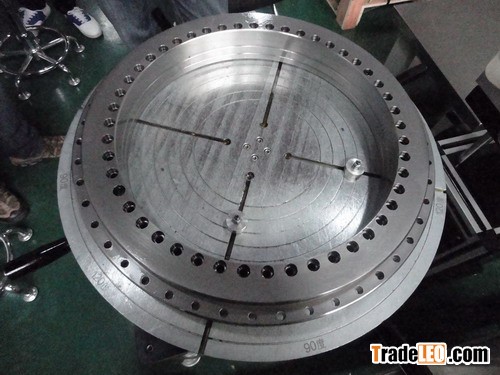

THB YRT395 High precision rotary table bearings

Model Number: YRT395

Type:  High precision rotary table bearings

Brand Name: THB

Material:GCr15

Bore Size:395 mm

Outside Diameter: 525 mm

Width:65mm

Place of Origin: China

Precision: P4, P2

Packing details: water-proof packing, single plywood case

Application: rotary tables, face plates, indexing tables, milling heads and reversible clamps, face plates, machine tools, measuring system etc.
