Product name: Pilow Blocks

Product brand: FKD, FE, HHB

Product item: UCP 201          201-8
                              202          202-10
                              203          203-11
                              204          204-12
                              205          205-14            205-15            205-16
                              206          206-18            206-19            206-20
                              207          207-20            207-21            207-22             207-23
                              208          208-24            208-25
                              209          209-26            209-27            209-28
                              210          210-30            210-31            210-32
                              211          211-32            211-34            211-35
                              212          212-36            212-38            212-39
                              213          213-40
                              214          214-44
                              215          215-47            215-48
                              216          216-50
                              217          217-52            217-55
                              218          218-56
                    UCP  X05          X05-14           X05-16
                    UCP  305--328

Insert bearing: UC200, UCX00, UC300, SA200, SB200, UK200, HC200, SER200

Product packing: Plastic bag + color single box + carton + pallet

Bearing material: Chrome steel (Gcr15)

Housing material: Cast iron (HT200), Stainless steel, Plastic resin, Zinc alloy, Pressed steel

Steel NO.         C(%)              Si(%)                Mn(%)                S(%)                  P(%)                  Cr(%)

Gcr15          0.95-1.05         0.15-0.35         0.20-0.40             ≤ 0.020             ≤ 0.027             1.30-1.65

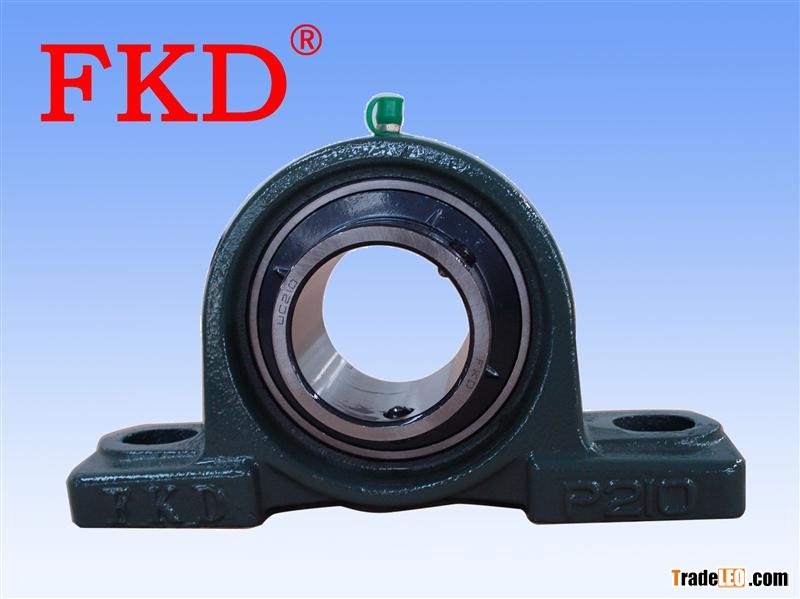

Pillow block, also known as plummer block] or bearing housing, is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. Housing material for a pillow block is typically made of cast iron or cast steel.

Pillow Block Bearings are composed of a single row deep groove ball bearings with seals at both sides and spherical outside surface, and a housing, suitable for simple support.

Pillow Blocks are for mechanical equipment, like agricaltural, metallurgical, textile and printing machinery.
