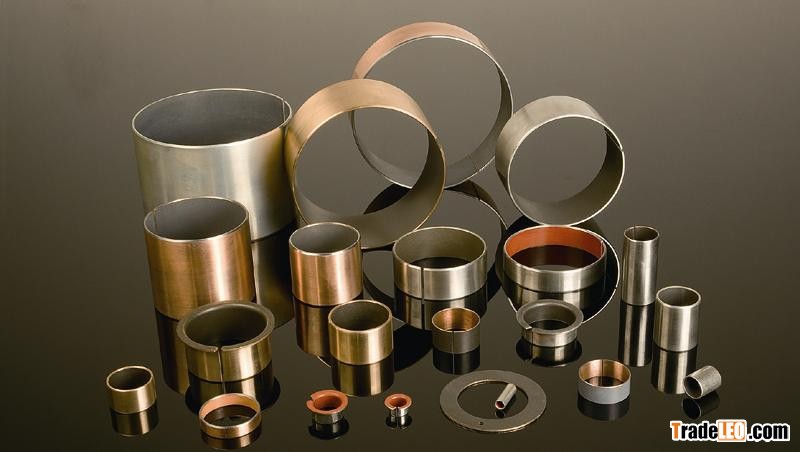

WB-010 is backed with copper-plated steel with porous bronze sintered on the steel and polymers imbedded into the bores of the bronze.The steel back provide the bush with stronger mechanic strength and poad capability.By combing the metals and the polymers together, its products are endowed with the lowerfriction coefficient and good capacity of anti-abrasion and self-lubrication.Moreover, the steel back is plated with a erosion-prevention layer.

physical performance:

load limit:static load :250N/mm2,dynamic load:140N/mm2,oscillation load:60N/mm2

max speed limit :grease lubrication 2.5m/s, oil lubrication 5m/s

max PV value:grease lubrication 3.6N/mm2.m/s,oil lubrication 50N/mm2.m/s

friction coefficient :grease lubrication :0.08~.20,oil lubrication 0.02-0.07

mating axis:hardness :>120HB, roughness:Ra=0.4-1.25

working temperature:-200~+280℃

heat-conducting coefficient:40W/(m.k)

Application:The WB-010 series are widly applied in printing,weaving and tobacco producing machines,gymnastic equipments,rock absorbers,etc.
